Custom Car Engine Mazda timing chain guide Suppliers

Home / Products / Timing Chain Guide / Mazda timing chain guide

// Product Categories

// Recommended Products

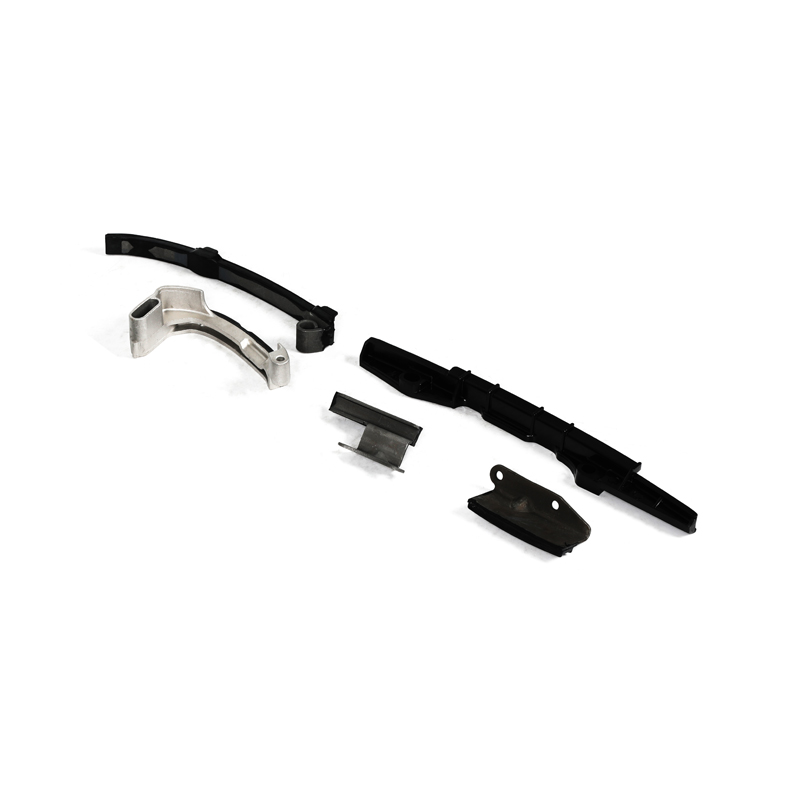

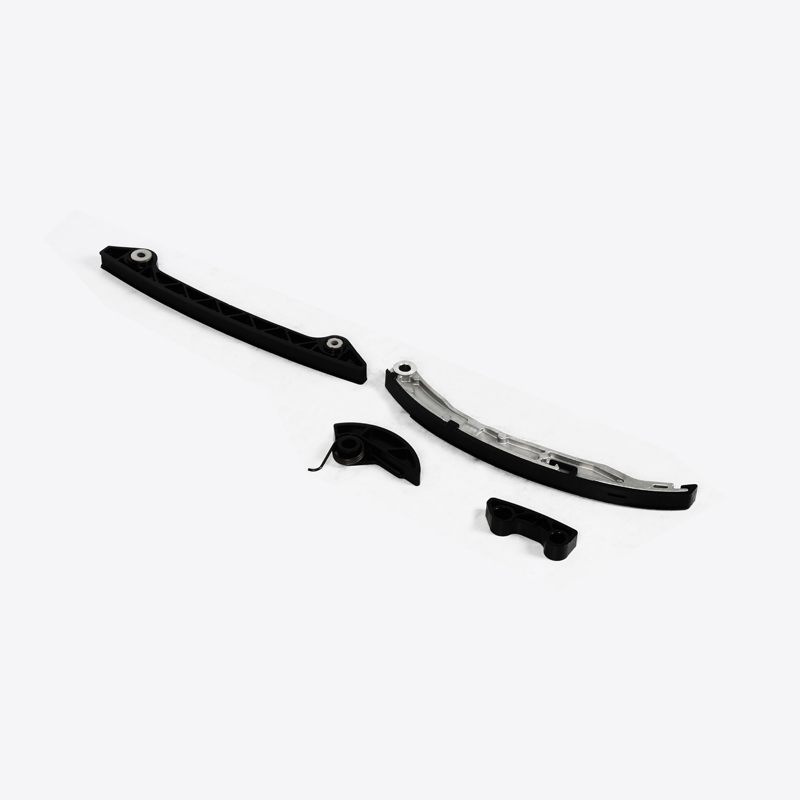

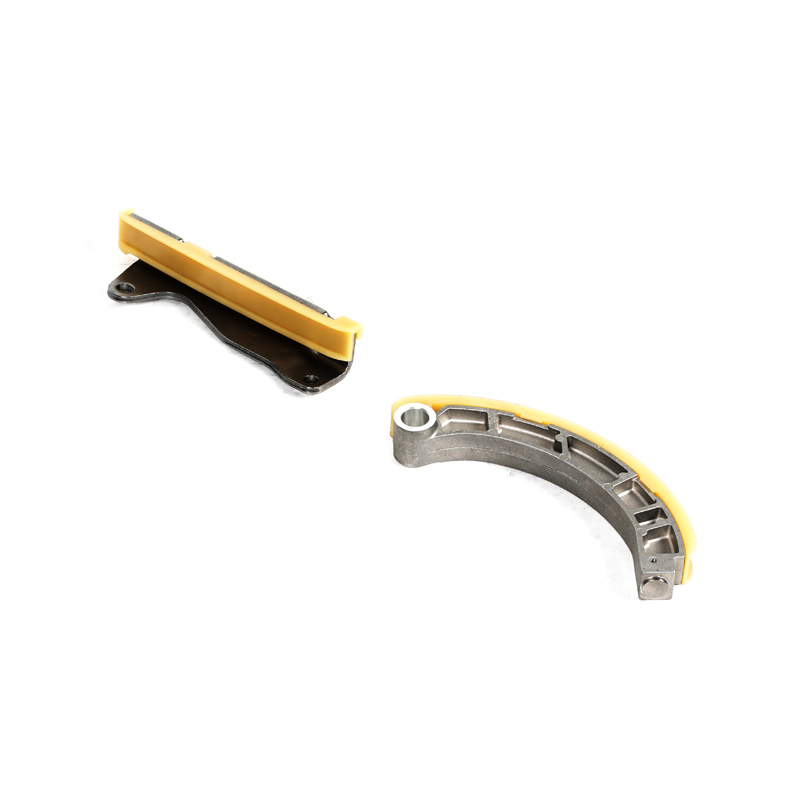

  • Mazda timing chain guide 0601
    Mazda timing chain guide 0601

    Category: Mazda timing chain guide

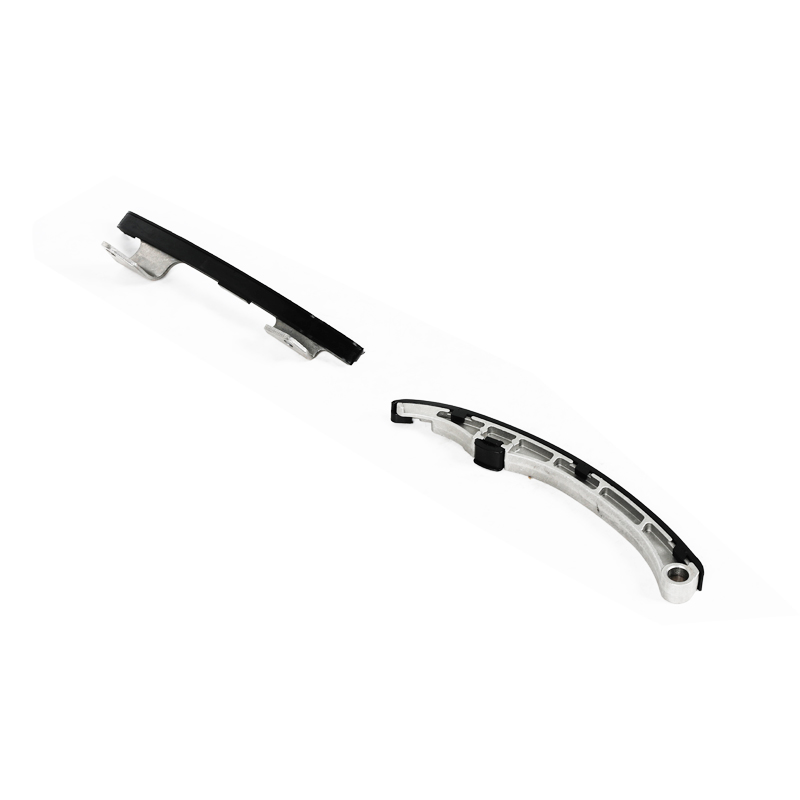

  • Mazda timing chain guide 0602
    Mazda timing chain guide 0602

    Category: Mazda timing chain guide

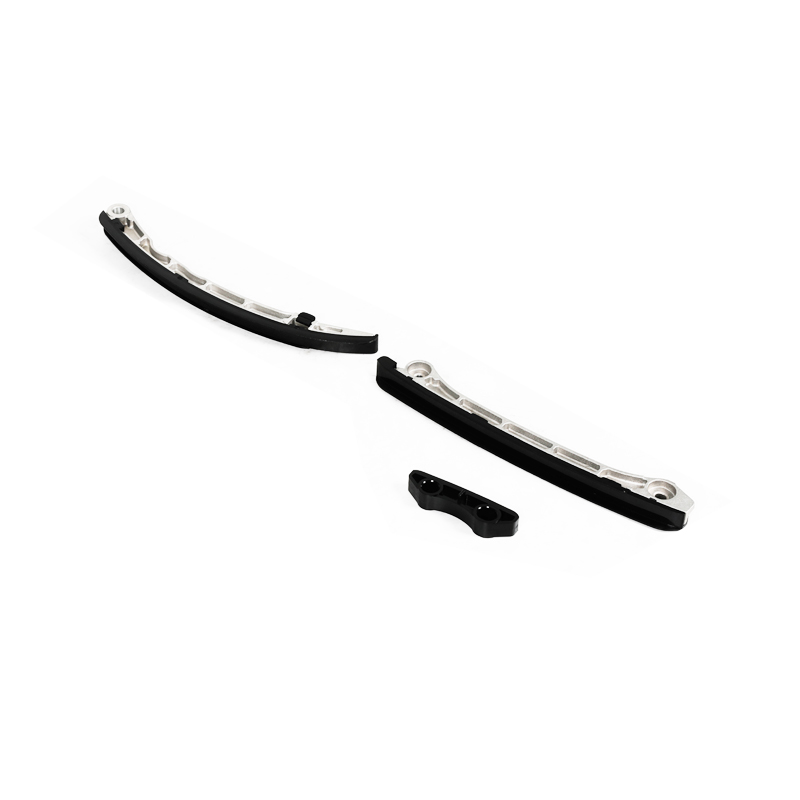

  • Mazda timing chain guide 0603
    Mazda timing chain guide 0603

    Category: Mazda timing chain guide

  • Mazda timing chain guide 0604
    Mazda timing chain guide 0604

    Category: Mazda timing chain guide

  • Mazda timing chain guide 0605
    Mazda timing chain guide 0605

    Category: Mazda timing chain guide

  • Mazda timing chain guide 0606
    Mazda timing chain guide 0606

    Category: Mazda timing chain guide

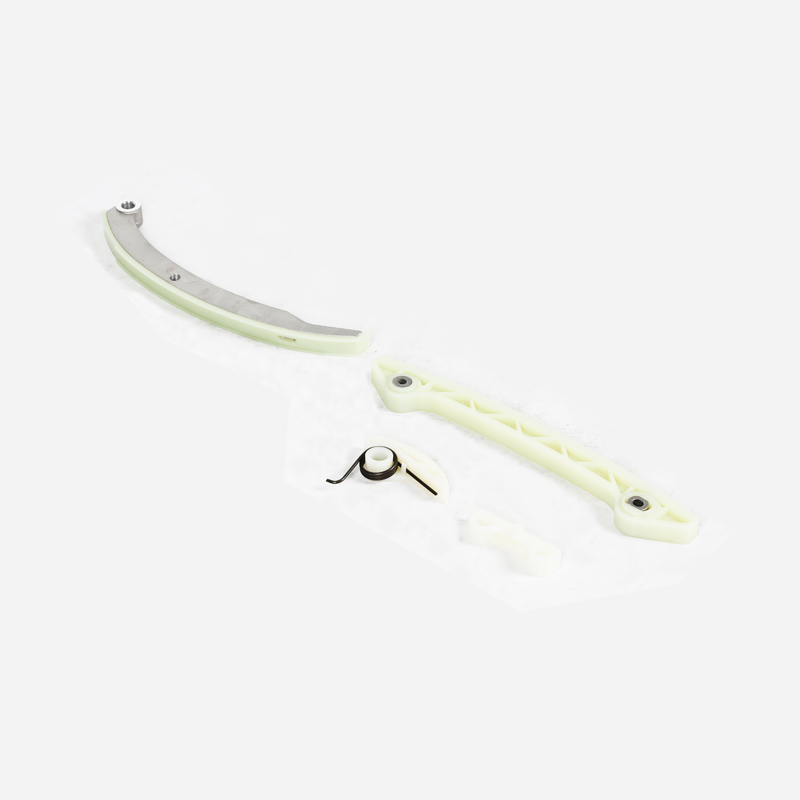

  • Mazda timing chain guide 0607
    Mazda timing chain guide 0607

    Category: Mazda timing chain guide

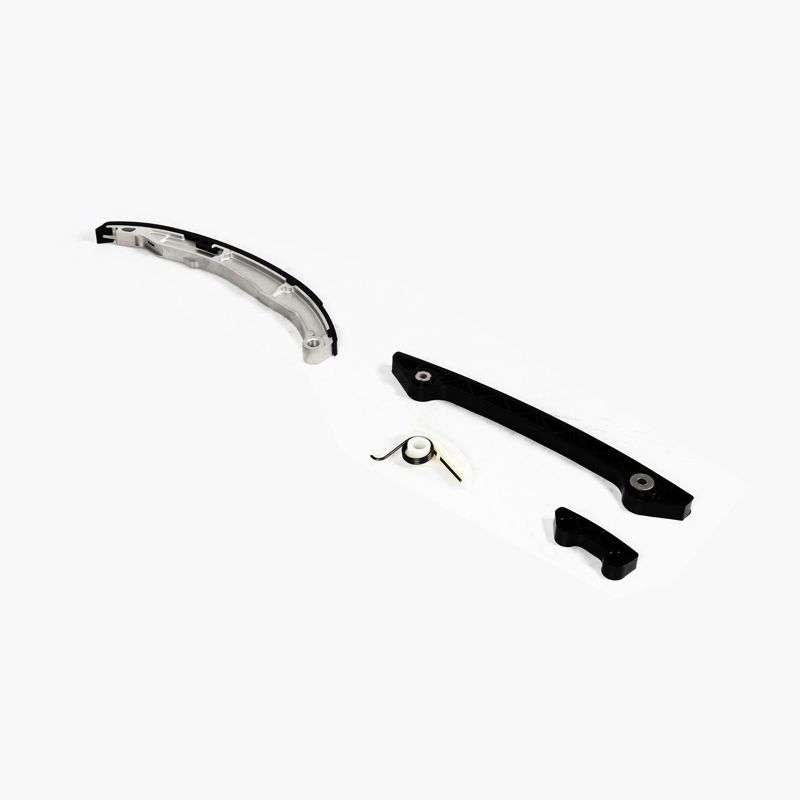

  • Mazda timing chain guide 0608
    Mazda timing chain guide 0608

    Category: Mazda timing chain guide

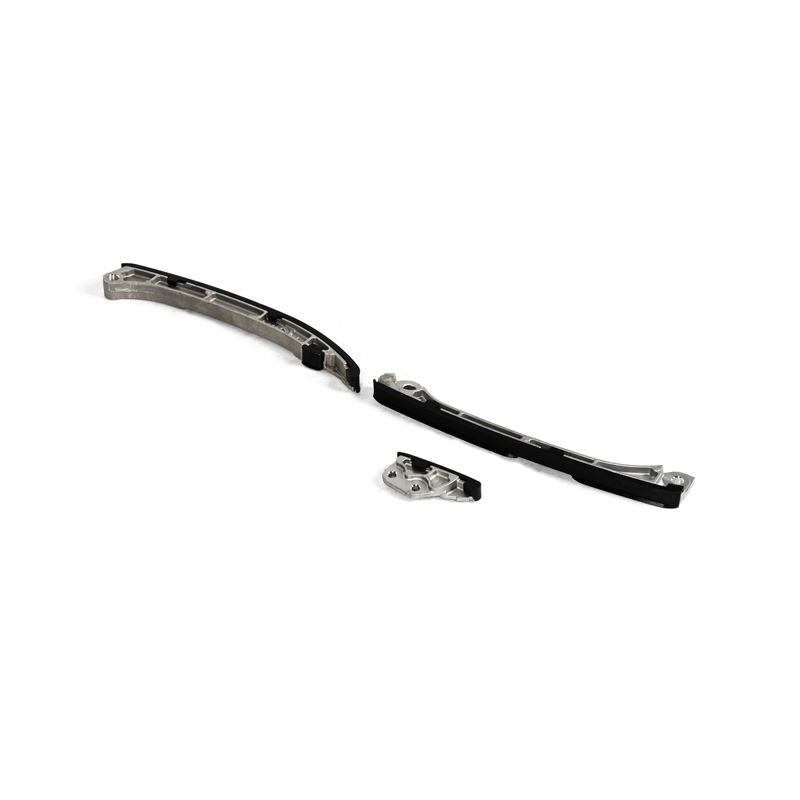

  • Mazda timing chain guide 0609
    Mazda timing chain guide 0609

    Category: Mazda timing chain guide

  • Mazda timing chain guide 0610
    Mazda timing chain guide 0610

    Category: Mazda timing chain guide

  • Mazda timing chain guide 0613
    Mazda timing chain guide 0613

    Category: Mazda timing chain guide

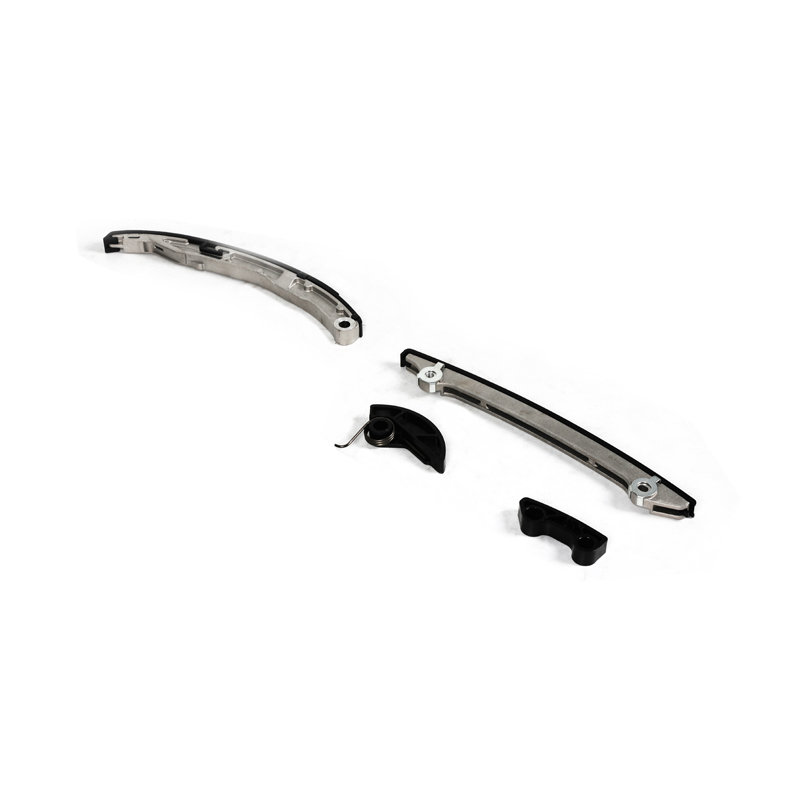

  • Mazda timing chain guide 0616
    Mazda timing chain guide 0616

    Category: Mazda timing chain guide

Product advantages:
1. Direct replacement -- applicable to Mazda guide rail, which can meet or exceed the performance requirements as well as the original factory, to ensure a quiet and maintenance free experience.
2. Each component has undergone extensive functional and durability tests and measurements to ensure optimal performance.
3. Made of high-quality materials, very durable.
4. Provide complete timing chain guide rail with the latest design and technology.

Product specification:
Friction lining material: plastic
Material: cast aluminum
Weight [kg]: 0160

Car Engine Mazda timing chain guide Suppliers

Huzhou Jingtong Auto Parts Manufacturing Co., Ltd is China car engine Mazda timing chain guide suppliers and OEM car engine Mazda timing chain guide company. We focus on auto engine timing chain kits, including timing chains, tensioners, guides, and gears. Our products are used for auto engine timing system parts. We have two our own manufacturing factory, we also have our own international sales department. we produce and sell all by ourselves. We will reply to you within 12 hours of the working day.

Honor & Certificate

  • GB/T14212-2003 Certificates
  • JB/T10348-200 Standard
  • GB/T14212-2003 Certificates
  • JB/T10348-200 Standard
  • GB/T14212-2003 Certificates
  • JB/T10348-200 Standard
  • Certificates
  • Certificates

Lastest News

Mazda timing chain guide Industry Knowledge Extension

Huzhou Nanxun Jingtong Auto Parts Manufacturing Co., Ltd. is a China-based manufacturer of automotive engine timing chain system components. We produce timing chains, sprockets, tensioners and guides, with timing chain guides as one of our core product lines. Our Car Engine Mazda timing chain guide Suppliers range covers 16 part numbers for Mazda engines, including the 2.3L MZR DISI Turbo platform.

Mazda Timing Chain Guide Range

Our Mazda timing chain guide catalogue includes 16 active part numbers. Each guide is a direct replacement for the corresponding Mazda guide rail, engineered to meet or exceed original performance requirements for quiet operation and maintenance-free service life. The range covers both fixed guide rails and curved tensioner guides used across Mazda petrol engine families.

Every guide combines a cast aluminium base with a friction lining. The base provides structural rigidity under chain load, while the lining controls chain sliding friction and dampens vibration. We select lining material and base alloy according to the thermal and mechanical demands of each engine application.

Application Fit and Engine Platforms

Mazda timing chain guides are not interchangeable across all engine families. Guide geometry, mounting hole positions, lining thickness and rail curvature are specific to each engine code. Our range is organised by Mazda part number and engine application so that distributors and workshops can match the correct guide to the engine being serviced.

  • MZR DISI Turbo (2.3L): High thermal load from turbocharging and direct injection. Guides in this family require heat-stabilised lining material and a rigid base to resist the chain whip that occurs during cold starts and high-torque events.
  • MZR naturally aspirated (1.8L, 2.0L, 2.5L): Lower peak temperatures but high cumulative chain cycles. Guide wear here is dominated by sliding friction and lining fatigue over extended service intervals.
  • SkyActiv-G petrol engines: Higher compression ratios and revised timing drive layouts place different demands on guide rail curvature and lining hardness.

For workshops and distributors, the practical selection variable is the engine code and model year. We recommend confirming the Mazda part number against the vehicle identification number before ordering, because Mazda has revised guide designs within the same engine family across production years.

Materials and Construction

Our Mazda timing chain guides use a cast aluminium base and a polymer friction lining. The base material is selected for dimensional stability under the operating temperature range of the timing cover environment. The lining is a heat-stabilised polyamide compound chosen for low friction, wear resistance and noise damping.

Feature Standard Aftermarket Guide Jingtong Reinforced Series
Lining material Standard PA66 nylon PA66 + glass fibre, heat-stabilised
Base support General carbon steel High-carbon chromium alloy steel
Manufacturing standard Industry baseline GB/T14212-2003 / JB/T10348-200
Thermal stability Up to 130°C Resistant up to 160°C
Wear rate Standard Low-friction, self-lubricating surface

The table above reflects the material and construction differences we apply across our guide range. Not every Mazda application requires the reinforced specification; we match the guide construction to the engine's thermal and load profile.

Critical Specifications and Tolerances

Timing chain guide performance depends on a small number of dimensional and material properties. Our production and inspection processes focus on the following variables:

  • Rail curvature and chain path: The guide face must follow the designed chain path within a tight tolerance. Deviation changes chain tension and can cause timing scatter or noise.
  • Mounting hole position and diameter: Guides are bolted to the cylinder head or block. Hole position errors prevent correct installation and can cause the guide to sit at an angle, accelerating lining wear.
  • Lining thickness and bond integrity: The polymer lining must be bonded to the base without voids or delamination. We inspect bond quality as part of our process control.
  • Surface finish on the chain contact face: A smooth, consistent lining surface reduces friction and noise. Rough or pitted surfaces accelerate chain wear.
  • Base flatness and rigidity: The guide must resist deflection under chain load. A flexible base allows the chain to move off its designed path.

Quality Control and Testing

We operate an in-house testing laboratory with inspection equipment covering chemical composition, mechanical properties, non-destructive testing and dimensional verification. Our quality process includes inspection after each production step and 100% inspection of finished guides according to customer requirements and applicable standards.

For Mazda timing chain guides, the relevant standards are GB/T14212-2003 and JB/T10348-200. These standards define material, dimensional and performance requirements for automotive engine timing chain components. Our production follows these standards under a strict quality management system.

Testing equipment available in our laboratory includes spectrometer, metallographic microscope, tension tester, low temperature tester, X-ray tester, MPI, UT, CMM and video measurement machine. This allows us to verify chemical composition, mechanical properties, non-destructive integrity and high-precision dimensions before shipment.

Customisation and OEM Supply

We support custom Mazda timing chain guide production according to customer drawings or samples. Our engineering team can develop guides for Mazda applications not currently in our standard catalogue, including revised OEM designs and performance variants.

Customisation options include lining material selection, base alloy specification, surface treatment and packaging. For distributors requiring private label supply, we can apply customer branding to packaging and product marking.

Our standard Mazda timing chain guide range covers 16 part numbers. For applications outside this range, we review the drawing or sample and confirm feasibility, tooling requirements and production lead time before quotation.

Related Timing Chain System Products

Timing chain guides are part of a complete timing drive system. We manufacture the full set of components so that distributors can source matched parts from a single supplier. Our related product ranges include:

Supplying guides together with chains, tensioners and sprockets from the same production system helps maintain compatibility between components and simplifies inventory management for distributors.

Information We Use to Configure Your Solution

To prepare an accurate quotation and configuration for Mazda timing chain guides, we need the following project information. Providing these details with your inquiry allows us to confirm fitment and supply the correct part without delay.

Information Required Why We Need It
Mazda part number or OEM reference Confirms the exact guide geometry and lining specification for the engine.
Engine code and model year Identifies the correct guide variant where Mazda has revised the design across production years.
Quantity per order and annual volume Determines production scheduling, packaging and shipping method.
Drawing or sample (for custom guides) Allows our engineering team to assess feasibility and tooling requirements.
Packaging and labelling requirements Ensures the product arrives ready for your distribution or workshop channel.
Destination port and delivery terms We quote FOB, CIF or CNF according to your preferred transaction method.

Installation, Maintenance and Service Life

Mazda timing chain guides are replaced as part of timing chain service. Industry practice recommends replacing guides whenever the timing chain is serviced, typically around 150,000 km, or immediately if plastic debris is found during oil inspection. Replacing guides together with the chain and tensioner restores the timing drive to its designed operating condition.

Guide failure modes include lining degradation, groove formation from chain wear, surface micro-cracking and delamination. These conditions increase chain whip, cause timing misalignment and can trigger diagnostic trouble codes such as P0012 or P0016. In advanced stages, lining fragments can migrate to the oil pickup tube and risk oil starvation.

Our guides are designed as direct replacements. Installation follows the vehicle manufacturer's service procedure for the specific Mazda engine. We recommend using new mounting bolts where specified and confirming chain tensioner reset procedure before reassembly.

Packaging, Delivery and Support

We ship Mazda timing chain guides in protective packaging suitable for international distribution. Packaging can be customised for private label programmes. Our warehouse is located in Tongxiang, near Shanghai and Hangzhou, with convenient access to Ningbo and Shanghai ports for sea freight. Air freight is available through Ningbo and Shanghai airports for urgent orders.

Our international sales department responds to inquiries within 12 working hours. We provide technical documentation, including part number references and material specifications, to support your sales and installation teams.

Frequently Asked Questions

Why is the Mazda 2.3L MZR Turbo particularly hard on timing chain guides?

The turbocharger raises engine bay temperature, and the DISI system generates high mechanical torque. This combination accelerates thermal degradation of the guide lining and increases chain whip during cold starts. Our reinforced guides use heat-stabilised polymer lining and high-carbon chromium alloy steel bases to resist these conditions.

How do you ensure product consistency across production batches?

We follow GB/T14212-2003 and JB/T10348-200 standards under a strict quality management system. Our in-house laboratory performs chemical composition, mechanical property, non-destructive and dimensional inspections. We inspect after each production step and conduct 100% inspection of finished guides before packing.

When should a Mazda timing chain guide be replaced?

Replace guides whenever the timing chain is serviced, typically around 150,000 km. Replace immediately if plastic debris is found during oil inspection or if you observe cold-start rattle, timing misalignment codes or visible lining damage. Replacing guides with the chain and tensioner restores the full timing drive system.

Can you produce custom Mazda timing chain guides from a sample?

Yes. We support custom production according to customer drawings or samples. Our engineering team reviews the sample, confirms material and dimensional requirements, and provides a quotation with tooling and lead time information. Custom lining materials and base alloys are available for specific applications.

What is the annual production capacity for timing chain guides?

Our annual production capacity exceeds 5,000,000 single parts across our timing chain system product lines. This capacity covers timing chains, guides, tensioners and sprockets. We operate from three branches covering 12,000 square meters, including an 8,000-square-meter factory established in 2022.

Which Mazda engine codes does your guide range cover?

Our Mazda timing chain guide range includes 16 part numbers covering MZR DISI Turbo, MZR naturally aspirated and SkyActiv-G petrol engine families. For specific engine codes not listed in our catalogue, we review the OEM part number or sample and confirm availability or custom production feasibility.
