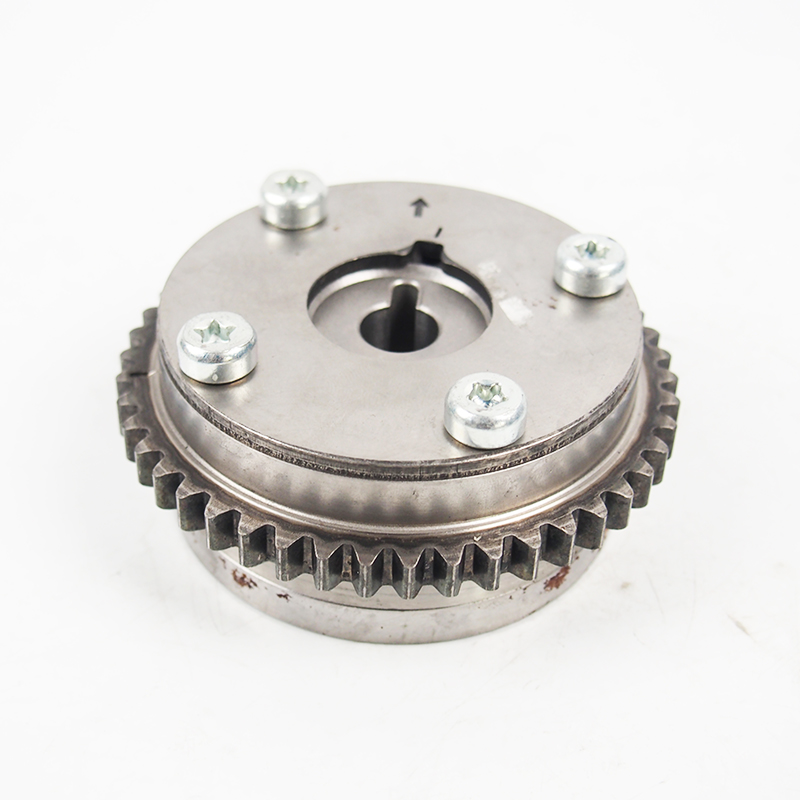

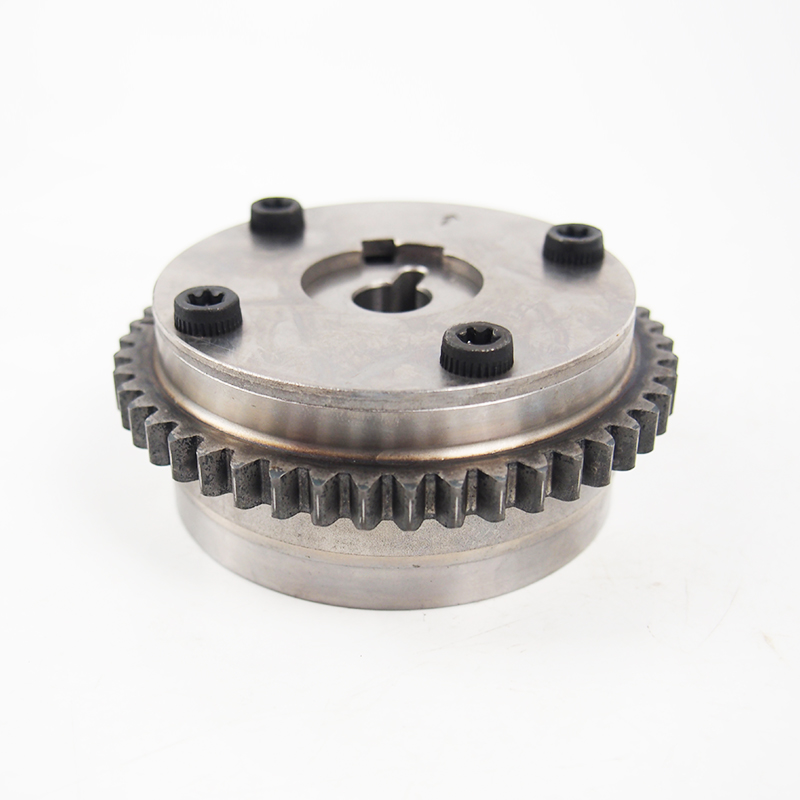

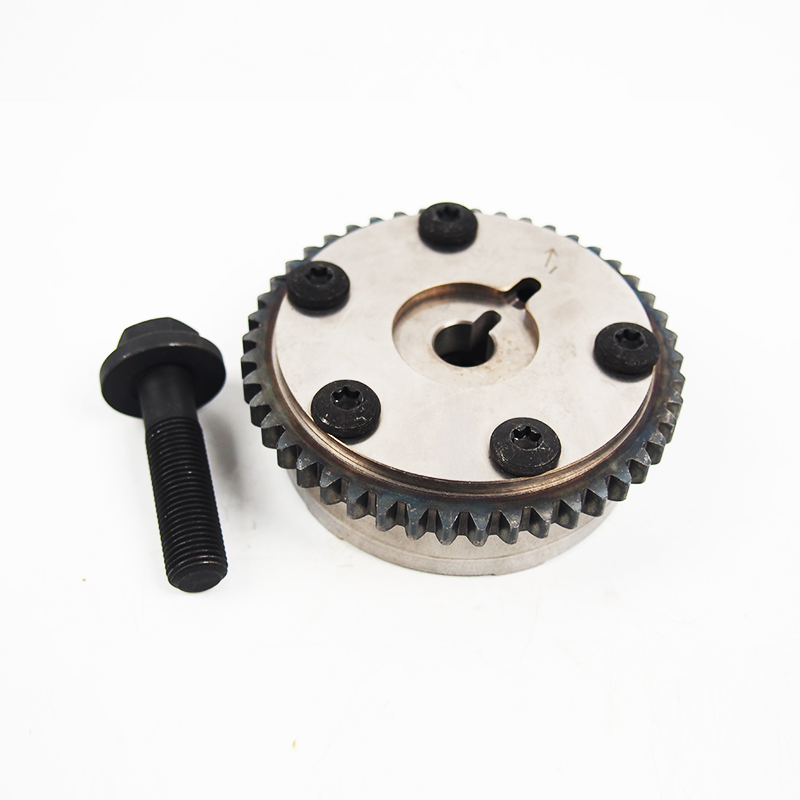

Honda VVT Camshaft Phase Regulator: Working Principle and Key Technology Analysis

1. Overview of Working Principle

The Camshaft Phase Regulator in Honda's VVT (Variable Valve Timing) system is a device that adjusts the angle of the camshaft relative to the crankshaft through hydraulic control, thereby changing the timing of the intake and exhaust valves. Its main functions are:

• Optimize engine performance: Adjust valve timing under different speeds and loads to achieve higher power output and smoother torque curve.
• Reduce fuel consumption and emissions: Achieve improved combustion efficiency and lower unburned fuel emissions through precise valve overlap control.

The operation relies on engine oil pressure, which drives internal rotating vanes or eccentric gears to adjust the camshaft angle and achieve dynamic valve timing adjustment.

2. Key Technology Analysis

2.1 Hydraulic Control Technology

• Uses oil pressure to drive the internal vanes of the regulator.
• High-precision oil path design ensures fast and stable response.

2.2 Mechanical Structure Design

• High-precision eccentric gears or vane design enable fine adjustment of the camshaft angle.
• Ensures stable operation under high temperature and high-pressure conditions.

2.3 Materials and Durability

• The main body and rotating vanes use high-strength alloy steel with high carbon and chromium content for wear resistance and fatigue strength.
• Precision surface processing enhances wear resistance and reduces friction loss.

2.4 Transmission Matching and Control

• Works closely with timing chain, guides, and tensioners to ensure accurate operation.
• Integrates with ECU oil pressure control logic to dynamically optimize under different conditions.

3. Company Advantages and Product Features

Huzhou Nanxun Jingtong Auto Parts Manufacturing Co., Ltd., established in 2013, has been focusing on the research and production of automotive engine timing chain system products, including chains, sprockets, tensioners, and guides. The main advantages are:

• Advanced manufacturing technology: High-precision CNC machining and surface strengthening processes.
• High-quality materials: High carbon and chromium alloy steel, compliant with GB/T14212-2003 and JB/T10348-200 standards.
• Strict quality management: Multiple testing devices ensure stable and reliable product performance.
• Production scale: In 2022, the company expanded a new 8000㎡ factory, and now three branches cover 12000㎡, enabling large-scale production.

3.1 Product Parameter Comparison

Note: The above parameters are typical reference values. Actual application may vary depending on engine type and operating conditions.

4. Conclusion

The Honda VVT Camshaft Phase Regulator precisely adjusts the camshaft angle through hydraulic control to optimize engine performance and emissions. Huzhou Nanxun Jingtong Auto Parts Manufacturing Co., Ltd. leverages advanced manufacturing, high-quality materials, and strict quality management to provide high-performance and reliable timing system components, offering excellent solutions for Honda and other vehicles' VVT systems.
