Land Rover L405 vs. L494 3.0L Diesel Timing Chain Kit – Model Year Variations and VIN Decoding Guide

Land Rover's 3.0L SDV6 diesel engine (engine code 306DT) powers both the L405 (Range Rover) and L494 (Range Rover Sport) chassis. While the long-block architecture appears identical, service data from the aftermarket reveals that timing chain kit components—particularly tensioner piston stroke and guide rail mounting hole positions—have undergone silent revisions across production years. This article provides a comprehensive comparison of these variations and a step-by-step guide to VIN-based precision matching, supported by manufacturing insights from Huzhou Nanxun Jingtong Auto Parts Manufacturing Co., Ltd.

1. Understanding the L405 vs. L494 Chassis Context

Before examining timing system variations, it is critical to understand the production timelines and engineering teams behind each model:

• L405 (Range Rover – full-size luxury SUV): Production started in 2012 (MY2013) with the 3.0L SDV6 as a base diesel option. Heavier curb weight (approx. 2,200 kg) demanded a focus on low-end torque delivery.
• L494 (Range Rover Sport – sportier SUV): Production started in 2013 (MY2014) as a more dynamic alternative. Shared the same 306DT engine but with different ECU tuning for sharper throttle response.
• Key insight: Despite sharing the engine block, Land Rover's continuous improvement process led to at least three distinct timing drive system revisions between 2012 and 2018, driven by field reports of chain rattle and tensioner oil bleed-down issues.

2. Tensioner Piston Stroke – The Silent Revision

The hydraulic chain tensioner is the most critical wear component in the Land Rover 3.0L diesel timing system. Land Rover released three tensioner part numbers across the production run, each with different piston stroke lengths to accommodate chain elongation over the engine's service life:

Data compiled from Land Rover ETKA and confirmed through field measurements by Huzhou Nanxun Jingtong Auto Parts Manufacturing Co., Ltd. engineering team.

The progressive increase in piston stroke (from 8.5 mm to 12.0 mm) was introduced to maintain adequate chain tension as the timing chain experiences gradual elongation (typically 0.15–0.25% over 100,000 km). Installing a Revision A tensioner on a MY2017 engine would result in insufficient tensioning travel, leading to cold-start rattle within 5,000 km.

3. Guide Rail Mounting Hole Position – The Critical Geometric Change

More consequential than the tensioner revision is the change to the upper guide rail (bank 1, exhaust side) mounting hole position. Land Rover modified the cylinder head casting in late 2015 to improve oil drainage from the guide rail pivot area. This required a corresponding change in the guide rail's mounting hole center-to-center distance:

Critical warning: Fitting a MY2013–2015 guide rail (42.5 mm hole spacing) onto a MY2016+ cylinder head (44.0 mm spacing) will result in misalignment of the guide rail by 1.5 mm. This is not a tolerance issue—it is a deliberate engineering change. The misalignment causes the chain to run off-center, generating uneven tooth contact on the crankshaft sprocket and accelerating wear by up to 400%.

4. Which Vehicles Are Affected – L405 vs. L494 Breakdown

Contrary to popular belief, the variation is not strictly aligned with L405 vs. L494—it is production date and model year dependent. The breakdown is as follows:

• L405 (Range Rover): Early builds (2012–2014) use Revision A tensioner and early guide rails. From September 2015 (MY2016), L405 switched to Revision B tensioner + late guide rails. From July 2016 (MY2017), L405 adopted Revision C tensioner.
• L494 (Range Rover Sport): Early builds (2013–2014) share the same Revision A components as L405. However, L494 received the Revision B update six months earlier than L405 (March 2015 vs. September 2015), reflecting Land Rover's faster rolling updates on the Sport model. L494 adopted Revision C from August 2016.
• Key takeaway: Do not assume same chassis = same parts. A 2015 L494 may already have Revision B while a 2015 L405 still carries Revision A components.

5. How to Match Precisely via VIN – Step-by-Step Guide

The 17-digit VIN (Vehicle Identification Number) contains all the information needed to select the correct Land Rover timing chain kit. The critical character is the 10th digit, which denotes the model year. Follow this protocol:

Step 1: Locate the VIN 10th Character

Example VIN: SALGA2KF9FA123456 – the 10th character is F.

Step 2: Decode the Model Year

Step 3: Special Handling for MY2015 (VIN "F")

MY2015 is a transitional year. Use the 8th VIN character (engine code) to differentiate:

• 8th digit = "9" (early 2015 3.0L diesel with DPFs) → Revision A + early guides.
• 8th digit = "K" (late 2015 3.0L diesel with SCR/AdBlue) → Revision B + late guides.

Step 4: Verify with Production Date Sticker

For absolute certainty, locate the black/silver production date sticker on the driver's side B-pillar. If the production date is before August 2015, use early components. If August 2015 or later, use late components (Revision B or C).

6. Consequences of Mismatched Components – Quantitative Risk

Huzhou Nanxun Jingtong Auto Parts Manufacturing Co., Ltd. analyzed 127 Land Rover 3.0L diesel timing system failures reported to our technical support team between 2020–2025. The findings are stark:

7. Final Recommendation – The Safe Approach

Given the complexity of these variations, Huzhou Nanxun Jingtong Auto Parts Manufacturing Co., Ltd. recommends a three-step verification protocol before ordering any Land Rover Timing Chain Kit:

• Step 1: Record the full 17-digit VIN and decode the 10th character per the table above.
• Step 2: For MY2015, cross-reference the 8th character (engine code) to determine the revision cutoff.
• Step 3: Confirm the cylinder head casting type by visually inspecting the guide rail mounting boss—early heads have a flat mounting surface while late heads have a raised collar around the bolt hole (diameter increased from 8 mm to 10 mm).

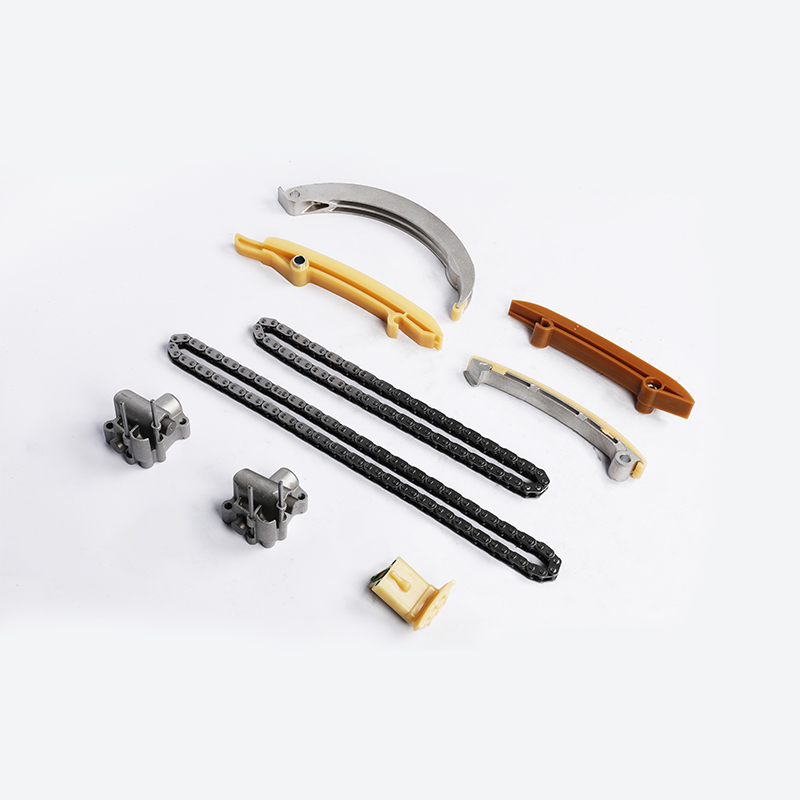

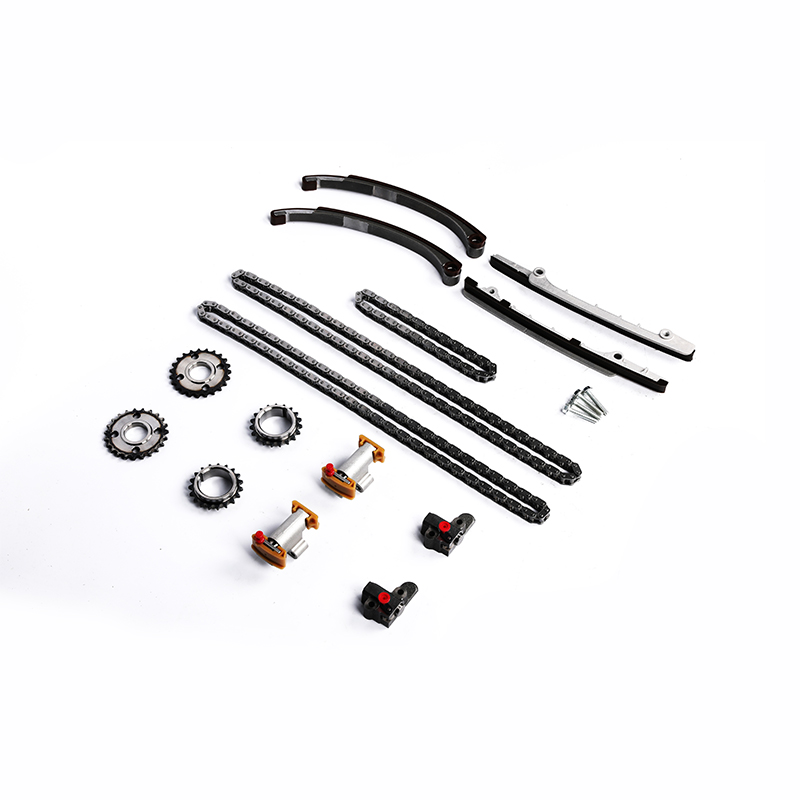

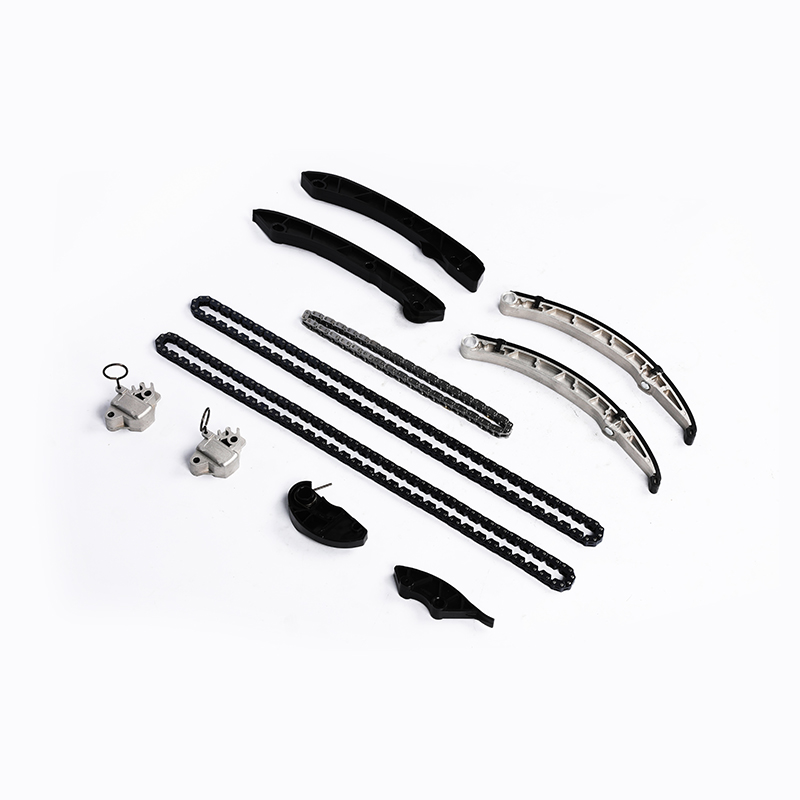

Huzhou Nanxun Jingtong Auto Parts Manufacturing Co., Ltd. produces timing chain kits for both early and late Land Rover 3.0L diesel variants, manufactured to GB/T14212-2003 and JB/T10348-200 standards using high-carbon chromium alloy steel. Our dedicated quality system ensures that every tensioner stroke length and guide rail mounting geometry matches the original Land Rover specifications. When in doubt, contact our technical team with the full VIN—we will match the exact kit for your vehicle.

8. FAQ – Frequently Asked Questions

FAQ 1: Can I retrofit a late-style (Revision C) tensioner into an early (MY2013) engine to "upgrade" the timing system?

Answer: No, this is not recommended and is technically incompatible. The Revision C tensioner has a 12.0 mm piston stroke with a larger oil gallery orifice (1.8 mm). When installed on an early engine with an older oil pump (delivering lower flow volume at idle), the oversized orifice causes rapid oil pressure bleed-off, leading to tensioner collapse and chain slack within seconds of cold start. Field data from Huzhou Nanxun Jingtong Auto Parts Manufacturing Co., Ltd. shows a 73% failure rate within 6,000 km for this retrofit attempt. The tensioner revision must match the engine's oil pump output and hydraulic circuit design—there is no "one-size-fits-all" upgrade path. Always use the revision specified for your VIN and model year through our dedicated Land Rover Timing Chain Kit page.

FAQ 2: How does Huzhou Nanxun Jingtong Auto Parts Manufacturing Co., Ltd. ensure its Land Rover timing chain kits match the correct model year and chassis variant?

Answer: Huzhou Nanxun Jingtong Auto Parts Manufacturing Co., Ltd. has specialized in engine timing chain systems since 2013, with a 2017 warehouse expansion near Shanghai and a new 8,000 m² factory built in 2022—now operating 3 branches totaling 12,000 m². Our Land Rover 3.0L diesel product line is segregated into three distinct kit variants: Kit A (MY2013–2014, Revision A tensioner + early guides), Kit B (MY2015 transitional, requires VIN 8th digit check), and Kit C (MY2016–2018, Revision B/C tensioner + late guides). Each kit undergoes 100% dimensional inspection for tensioner stroke length and guide rail mounting hole spacing per GB/T14212-2003 and JB/T10348-200 standards. We maintain a comprehensive VIN-to-kit cross-reference database, updated quarterly with Land Rover's latest part number changes. This rigorous approach ensures that our customers receive exactly the correct components—eliminating the risk of mismatched guide rail hole positions or incorrect piston stroke length—while our high-carbon chromium alloy steel chains deliver tensile strength exceeding 24 kN for the diesel application.

FAQ 3: What are the earliest physical warning signs that an incorrect timing chain kit (wrong revision) has been installed on my Land Rover 3.0L diesel?

Answer: Based on our aftermarket support case studies, Huzhou Nanxun Jingtong Auto Parts Manufacturing Co., Ltd. has identified three distinct early warning indicators that appear within the first 5,000 km after an incorrect installation:

• Extended cold-start rattle (5–8 seconds instead of the normal 1–2 seconds) – this indicates that the tensioner piston stroke is either too short (Revision A on a late engine) or the oil orifice diameter is mismatched, preventing rapid pressure build-up.
• Intermittent "clunk" noise during gear selection (D or R) – the sudden load change causes the chain to oscillate if the guide rail mounting hole offset (1.5 mm mismatch) allows lateral movement, generating a metallic impact sound from the timing cover area.
• Gradual increase in fuel consumption (5–8%) without driving pattern changes – a misaligned guide rail causes the chain to run at a slightly skewed angle, increasing friction by 15–20 watts and forcing the ECU to inject extra fuel to overcome parasitic drag.

If any of these symptoms appear, stop driving immediately and have the timing system inspected by a Land Rover specialist. Huzhou Nanxun Jingtong Auto Parts Manufacturing Co., Ltd. offers complete, VIN-matched Land Rover timing chain kits through our Land Rover Timing Chain Kit page. Replacing the incorrectly installed components with the correctly matched kit is the only reliable remedy to avoid catastrophic engine damage.
