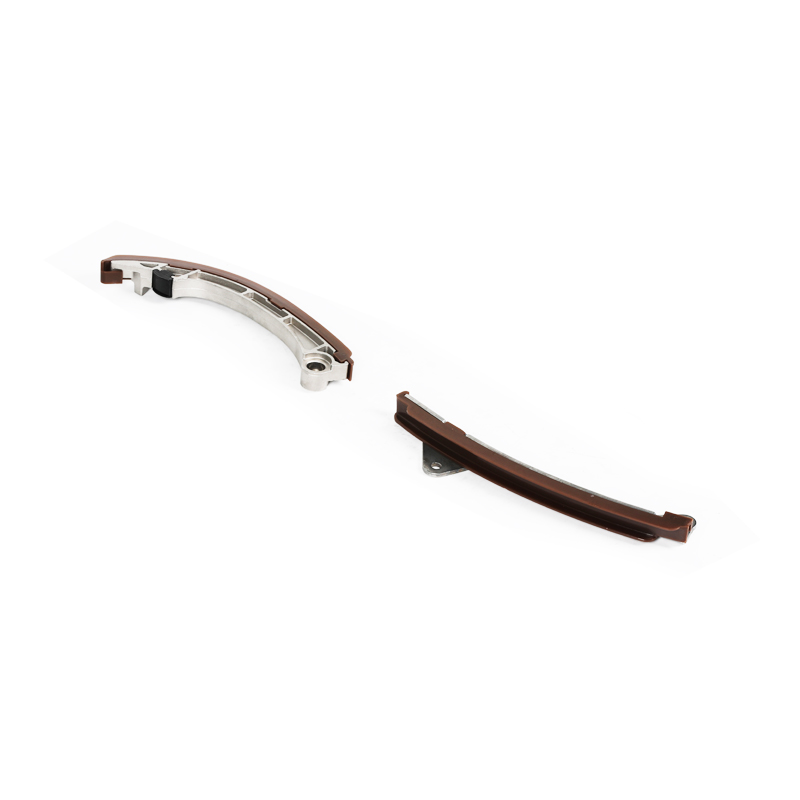

  • Toyota timing chain guide 0401
    Toyota timing chain guide 0401

    Category: Toyota timing chain guide

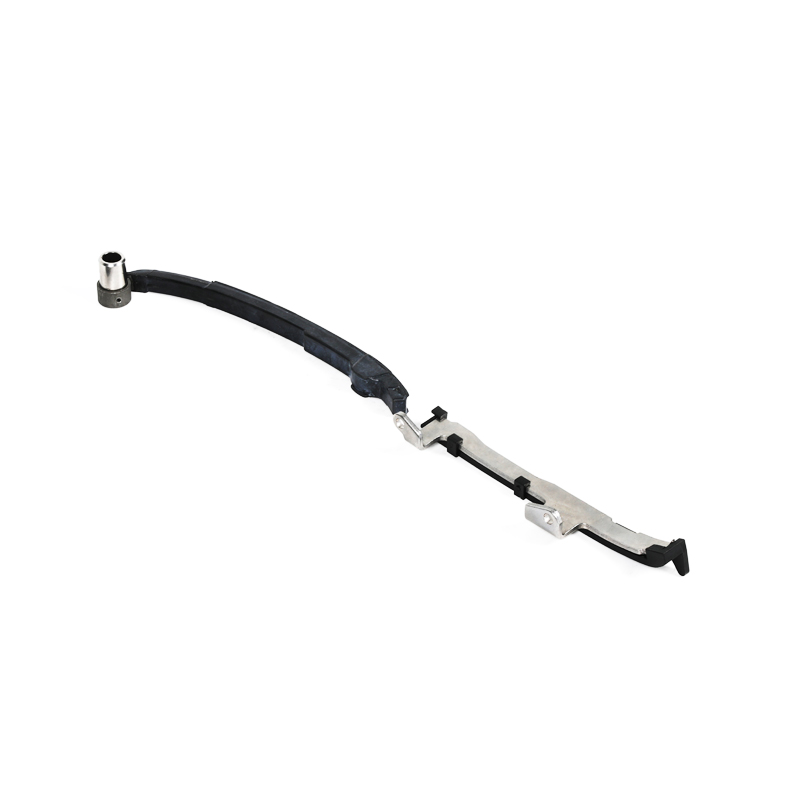

  • Toyota timing chain guide 0402
    Toyota timing chain guide 0402

    Category: Toyota timing chain guide

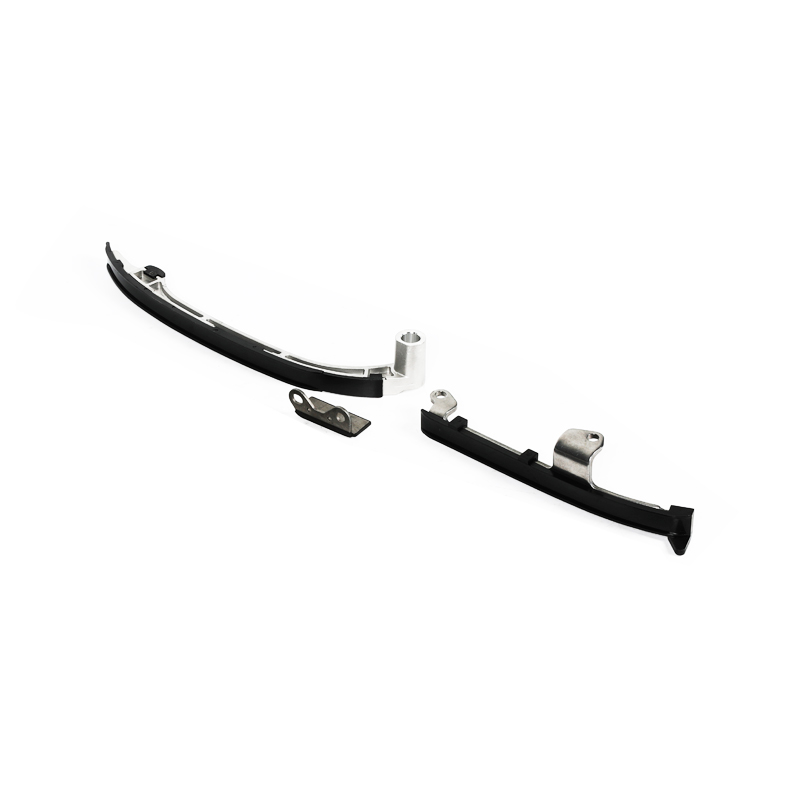

  • Toyota timing chain guide 0403
    Toyota timing chain guide 0403

    Category: Toyota timing chain guide

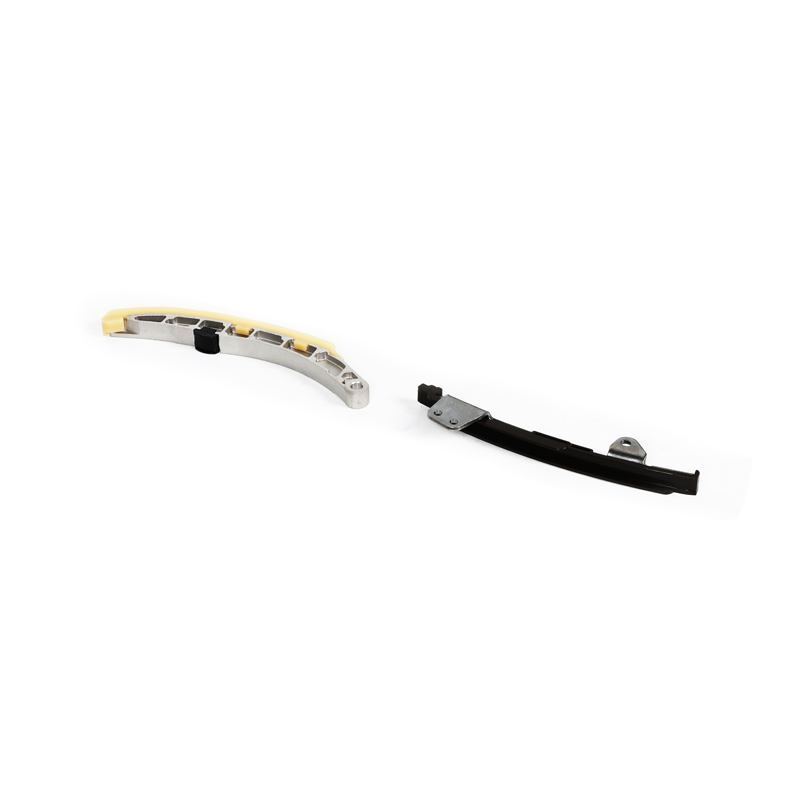

  • Toyota timing chain guide 0404
    Toyota timing chain guide 0404

    Category: Toyota timing chain guide

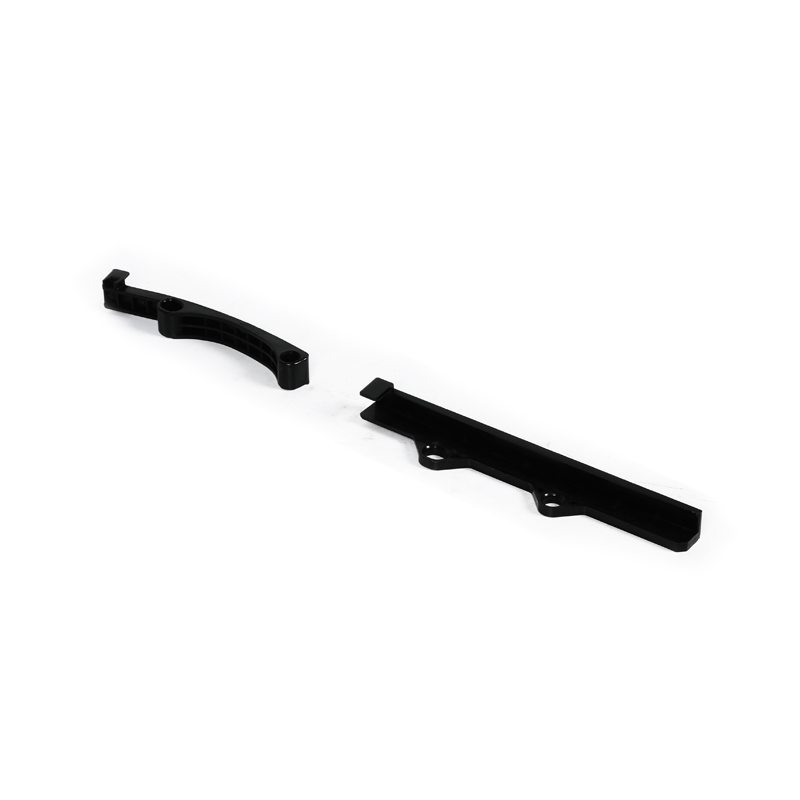

  • Toyota timing chain guide 0405
    Toyota timing chain guide 0405

    Category: Toyota timing chain guide

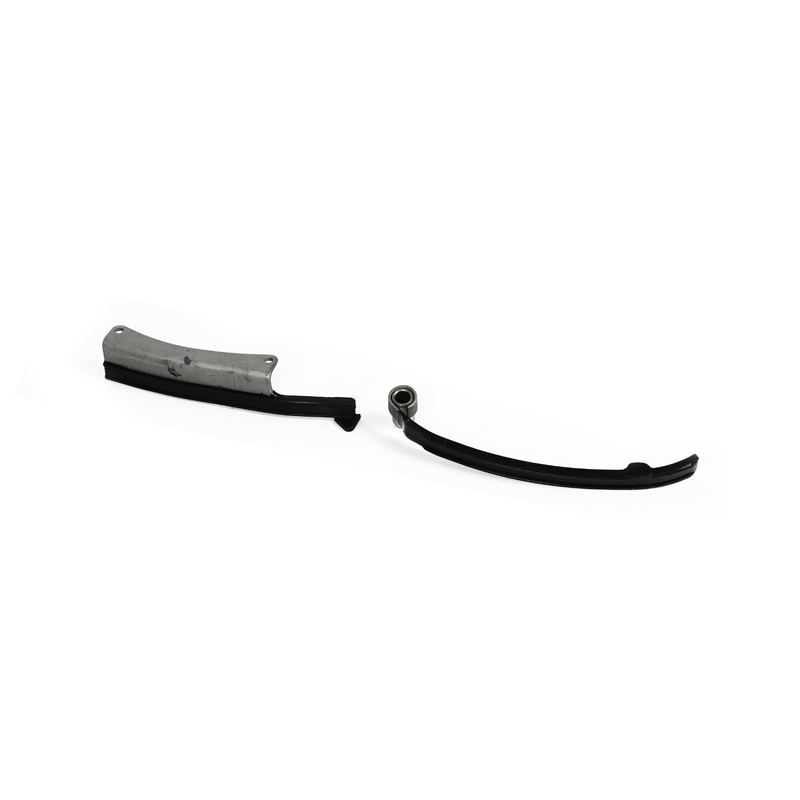

  • Toyota timing chain guide 0406
    Toyota timing chain guide 0406

    Category: Toyota timing chain guide

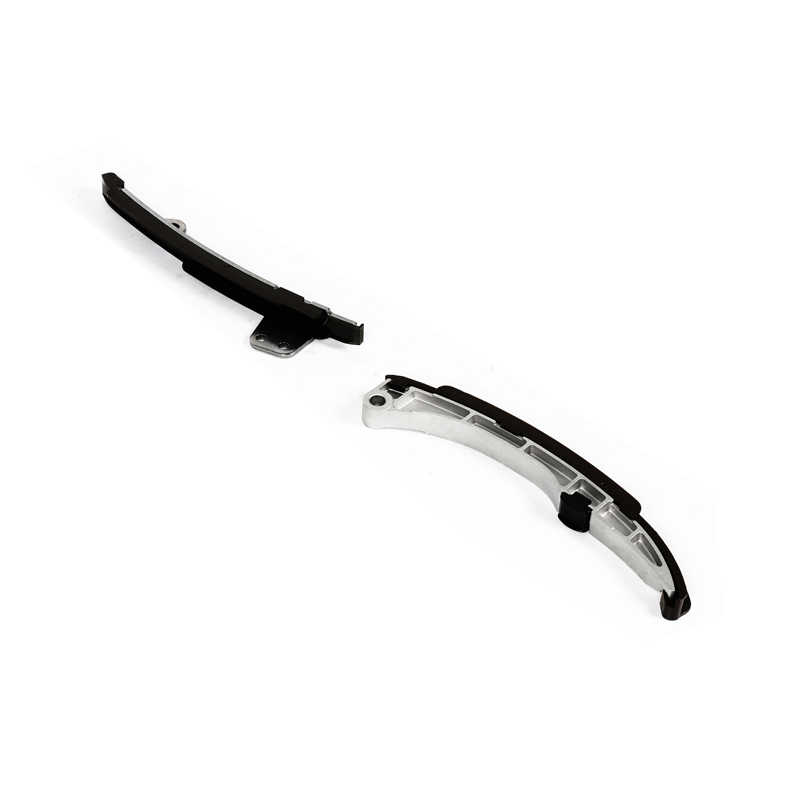

  • Toyota timing chain guide 0407
    Toyota timing chain guide 0407

    Category: Toyota timing chain guide

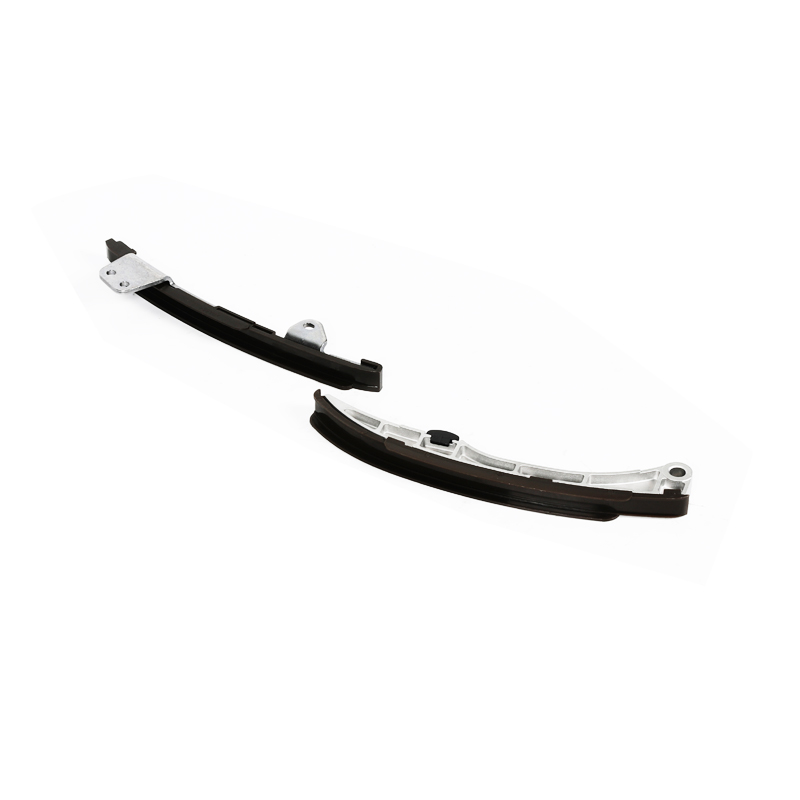

  • Toyota timing chain guide 0408
    Toyota timing chain guide 0408

    Category: Toyota timing chain guide

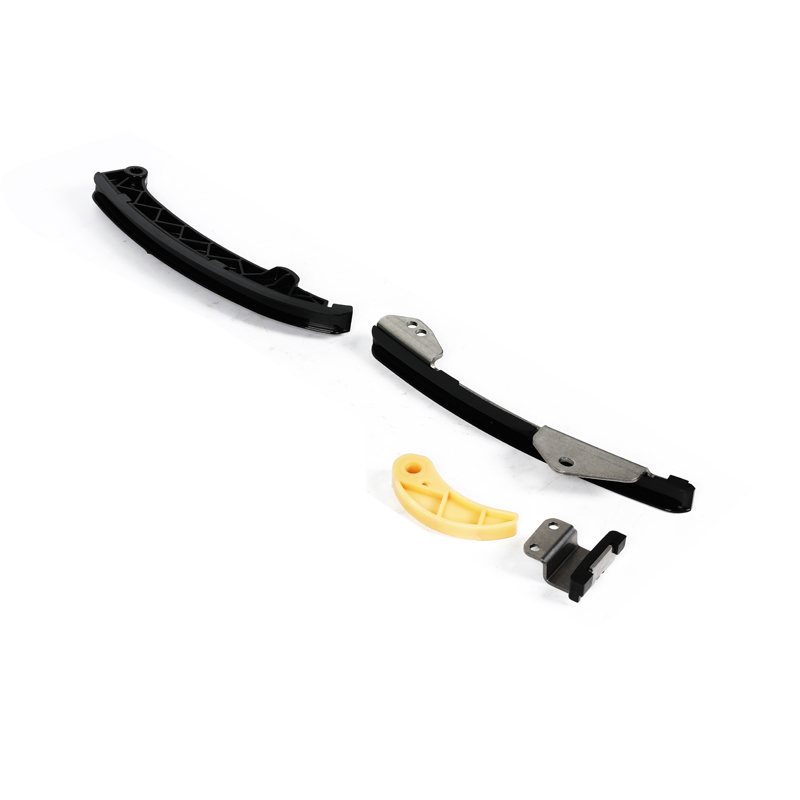

  • Toyota timing chain guide 0409
    Toyota timing chain guide 0409

    Category: Toyota timing chain guide

  • Toyota timing chain guide 0410
    Toyota timing chain guide 0410

    Category: Toyota timing chain guide

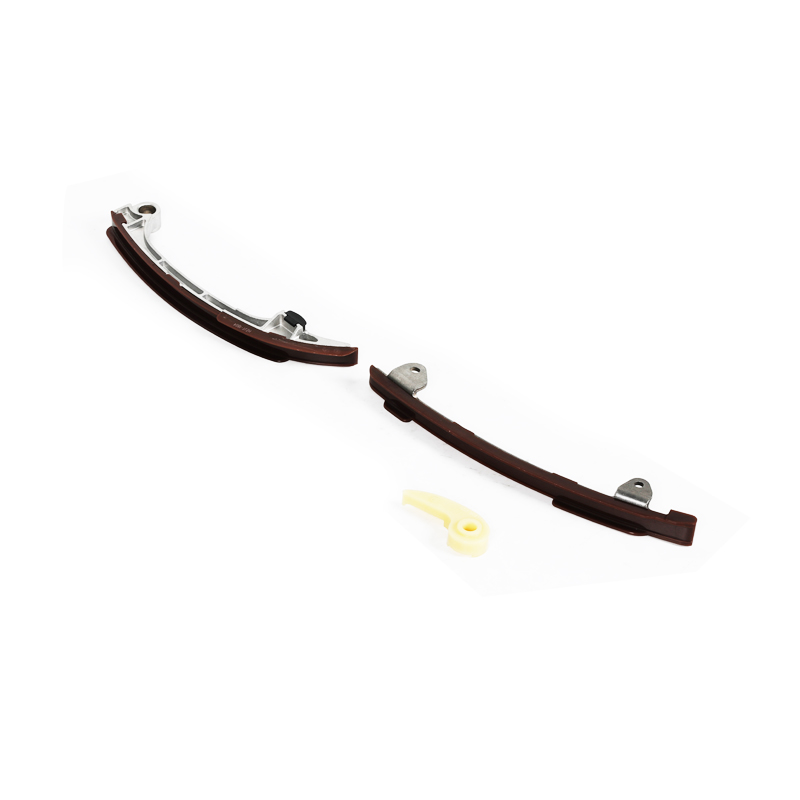

  • Toyota timing chain guide 0412
    Toyota timing chain guide 0412

    Category: Toyota timing chain guide

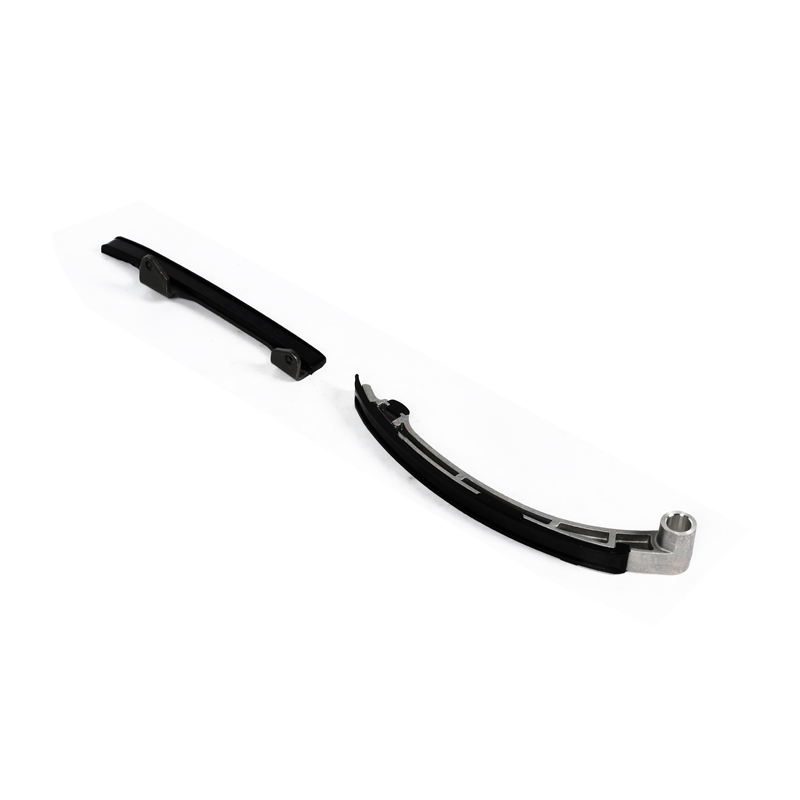

  • Toyota timing chain guide 0413
    Toyota timing chain guide 0413

    Category: Toyota timing chain guide

Product advantages:
1. Direct replacement -- applicable to Toyota's guide rail, which can meet or exceed the performance requirements as well as the original factory, to ensure a quiet and maintenance free experience.
2. Each component has undergone extensive functional and durability tests and measurements to ensure optimal performance.
3. Made of high-quality materials, very durable.
4. Provide complete timing chain guide rail with the latest design and technology.

Product specification:
Friction lining material: plastic
Material: cast aluminum
Weight [kg]: 0,14

Car Engine Toyota timing chain guide Suppliers

Huzhou Jingtong Auto Parts Manufacturing Co., Ltd is China car engine Toyota timing chain guide suppliers and OEM car engine Toyota timing chain guide company. We focus on auto engine timing chain kits, including timing chains, tensioners, guides, and gears. Our products are used for auto engine timing system parts. We have two our own manufacturing factory, we also have our own international sales department. we produce and sell all by ourselves. We will reply to you within 12 hours of the working day.

Honor & Certificate

  • GB/T14212-2003 Certificates
  • JB/T10348-200 Standard
  • GB/T14212-2003 Certificates
  • JB/T10348-200 Standard
  • GB/T14212-2003 Certificates
  • JB/T10348-200 Standard
  • Certificates
  • Certificates

Lastest News

Toyota timing chain guide Industry Knowledge Extension

Huzhou Nanxun Jingtong Auto Parts Manufacturing Co., Ltd. produces automotive engine timing chain system components — chain, sprocket, tensioner and guide — from our base in Tongxiang, Zhejiang Province, China. Our main lines are chain, guide and tensioner, and the Toyota timing chain guide range covers 49 catalogued guide references for Toyota engines.

We are a Car Engine Toyota timing chain guide Suppliers working directly with engine rebuilders, aftermarket distributors and private-label programmes. Guides are cast aluminium bodies with a moulded friction lining, supplied as direct replacements for the original rail.

What a Toyota Timing Chain Guide Has to Do

The guide rail holds the chain on its path between crankshaft and camshaft sprockets, controls the slack side of the loop and gives the tensioner a reaction surface. On Toyota engines the rail is a cast aluminium body with a plastic friction lining; the lining takes the sliding contact, the aluminium carries the bending load.

Two failure modes drive replacement demand. The lining wears through or cracks, exposing aluminium to the chain; or the rail loses its geometry and the chain begins to run loose, producing the rattle that owners hear at cold start. Both conditions change camshaft phasing relative to the crankshaft, so the guide is a timing-critical part, not a bracket.

  • Friction lining: moulded plastic, dimensionally matched to the chain pitch and roller profile.
  • Body: cast aluminium, machined at the mounting points and pivot bore.
  • Typical unit weight: from 0.14 kg depending on rail length and section.
  • Function: chain path control, noise reduction, wear protection for the chain and sprockets.

Our Toyota Timing Chain Guide Range

Our Toyota guide programme is built around the rail positions used across Toyota petrol and diesel engine families. Each reference is identified by its own part number in the 0401–0413 series and by the engine and model application it serves.

Guide Position Where It Sits Typical Application
Fixed guide rail Tight side of the chain loop Camshaft drive on inline four-cylinder engines
Tensioner guide rail Slack side, pivoting against the tensioner Engines with hydraulic or spring tensioner
Upper camshaft rail Between camshaft sprockets Twin-cam and VVT engines
Lower crank rail Near the crankshaft sprocket Long chain runs and balancer drives

Because the rail is only one element of the drive, we also supply the matching Toyota K3Ve Car Engine Timing Chain Kit so that guide, chain, tensioner and sprocket are replaced as a matched set rather than one part at a time.

Materials and Manufacturing Control

Guide bodies are cast in aluminium and the friction lining is moulded in engineering plastic. We machine the pivot bore, mounting faces and rail profile after casting so the rail seats on the block or head without shimming.

Production follows GB/T14212-2003 and JB/T10348-200 standards, and our quality system applies inspection at each process step rather than only at final packing. Finished guides are checked dimensionally against the drawing and functionally against the chain they will run with.

  • Spectrometer analysis of incoming aluminium and steel stock
  • Metallographic microscope for structure verification
  • Tension tester and low-temperature tester for lining behaviour
  • X-ray, MPI and UT for internal soundness of castings
  • CMM and video measurement for bore, profile and mounting geometry

Our inspection lab holds this equipment in-house, which means dimensional and material results are available with the shipment rather than sourced from a third party after the fact.

Fitment, Installation and Service Notes

The rail is a direct replacement: it mounts on the original bosses and pivot pin, and the chain wraps without modification. Fitment is confirmed by engine code and model year, not by visual similarity, because Toyota used different rail lengths and pivot positions across engine generations.

For rebuilders and workshops, the practical sequence is to replace the guide together with the chain and tensioner. A new rail running against a stretched chain wears prematurely, and a new chain running against a worn rail will not hold its path. We recommend confirming the following before installation:

  1. Engine code and model year matched to the guide reference.
  2. Chain pitch and link count verified against the kit or the original.
  3. Pivot pin and mounting bolt condition checked for wear.
  4. Tensioner travel checked before the cover is refitted.
  5. Timing marks aligned and rotation checked by hand before start-up.

Custom and Private-Label Supply

We develop guides from customer drawings or physical samples. That covers private-label packaging, part-number marking, and rails for Toyota derivatives that are not in our standard catalogue. Our engineering team works from the sample geometry, the chain it must run with, and the engine application.

Where a customer supplies a complete engine timing set requirement, we can build the guide into a matched assembly with chain, tensioner and sprocket from the same production batch. Our annual capacity exceeds 5,000,000 single parts across the timing system lines, and we hold more than 100 employees including 5 engineers and 5 technicians.

Information We Use to Configure Your Solution

To quote a Toyota guide programme accurately we need the application data below. Missing items are confirmed with you before pricing is issued.

Input Why We Need It
Engine code and model year Selects the correct rail length, pivot position and lining profile
OE part number or sample Confirms the reference and allows reverse-engineering where needed
Guide position in the drive Fixed rail, tensioner rail or upper camshaft rail
Quantity per model and per year Sets the production batch and packing format
Packaging and marking requirement Neutral, branded or private-label cartons and labels
Inspection and acceptance criteria Dimensional report, material certificate or pre-shipment sample

Related Timing System Products

Guides are supplied alongside the rest of the timing system so that a rebuild or a distribution programme can be sourced from one factory. Our catalogue covers 563 timing chain kit references across 30-plus vehicle brands, including the Ford 3.5 4.0 Car Engine Timing Chain Kit and the Bmw N14 N20 N26 Car Engine Timing Chain Kit ranges.

  • Timing chain kits: chain, tensioner, guide and sprocket in one set
  • Timing chains: silent chain in high-carbon chromium alloy steel
  • Tensioners: hydraulic and spring types, universal and vehicle-specific
  • Sprockets: crankshaft and camshaft sprockets with defined tooth profile and keyway
  • VVT phase regulators: camshaft phasers for Toyota and other brands

Frequently Asked Questions

Which Toyota engines does your timing chain guide range cover?

Our Toyota guide catalogue holds 49 references covering the rail positions used across Toyota petrol and diesel engine families. Fitment is confirmed by engine code and model year, and we will match the correct reference against your OE number or a physical sample before quoting.

What material is the guide made from?

The body is cast aluminium and the friction surface is a moulded plastic lining. Unit weight starts at approximately 0.14 kg depending on rail length and section. The aluminium carries the load; the lining controls sliding wear and noise.

Should the guide be replaced with the chain and tensioner?

Yes. A new rail against a stretched chain wears quickly, and a new chain against a worn rail will not hold its path. We supply guides individually and as part of matched Toyota timing chain kits so the whole drive is renewed together.

Can you produce guides to our own drawing or sample?

We develop guides from customer drawings or physical samples, including private-label marking and packaging. Send the sample geometry, the chain it must run with and the engine application, and our engineering team will confirm feasibility and tooling requirements.

What quality documentation accompanies a guide shipment?

Production follows GB/T14212-2003 and JB/T10348-200 standards with inspection at each process step. Our in-house lab runs spectrometer, metallographic, tension, low-temperature, X-ray, MPI, UT, CMM and video measurement checks, and dimensional or material reports are issued against the agreed acceptance criteria.

How do you handle shipping and delivery?

Goods ship by sea from Ningbo or Shanghai port, both close to our Tongxiang facility. Air freight via Ningbo or Shanghai airport is available for urgent orders. Payment terms are confirmed at quotation, with 30% deposit before production and 70% against copy of documents as the standard arrangement.
