Car Engine Hyundai Timing Chain Kit Suppliers

Hyundai Timing Chain Kits We Manufacture

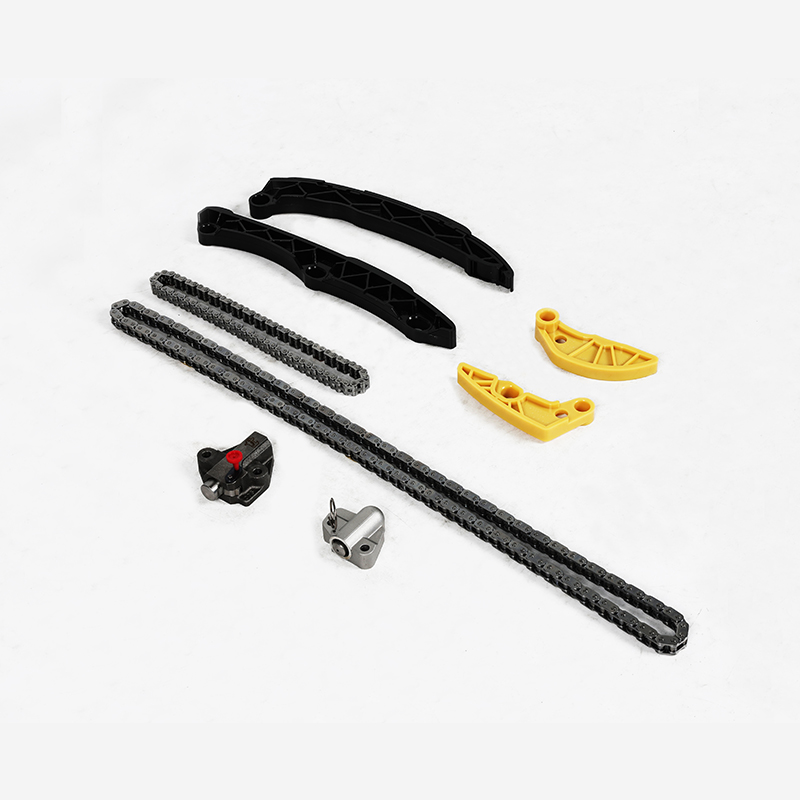

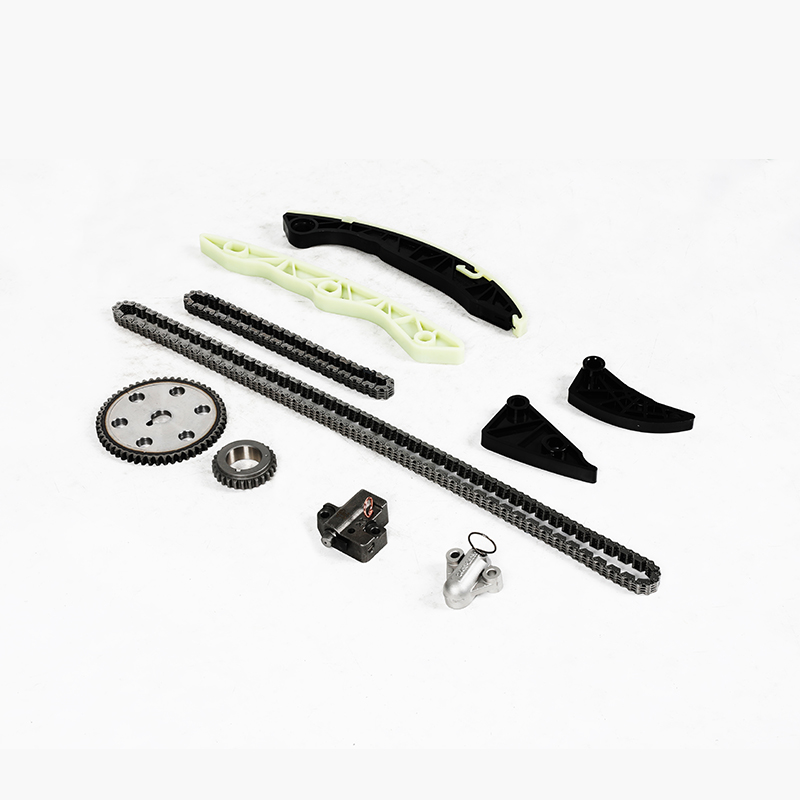

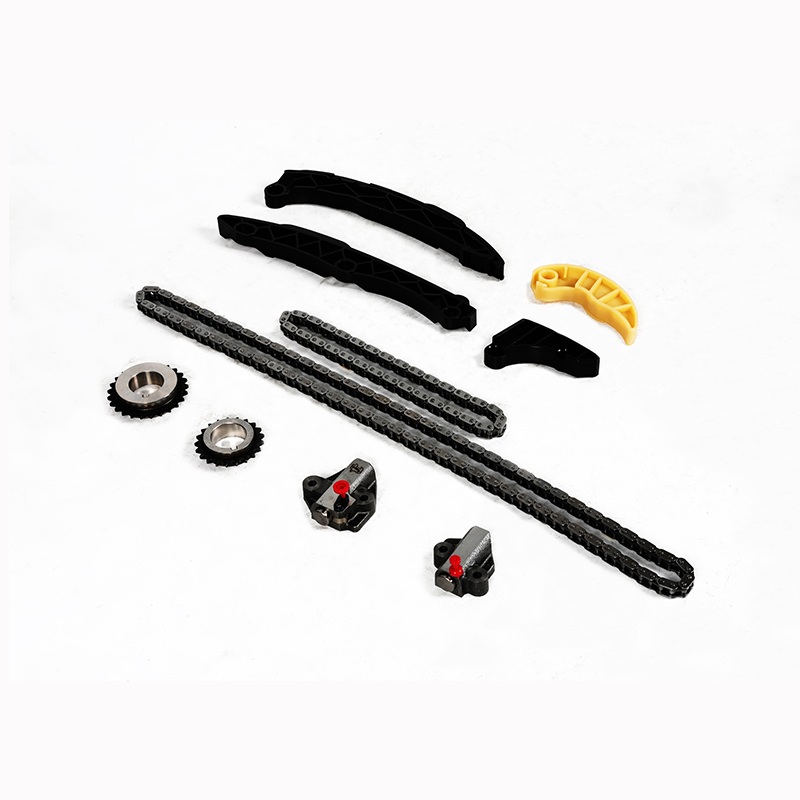

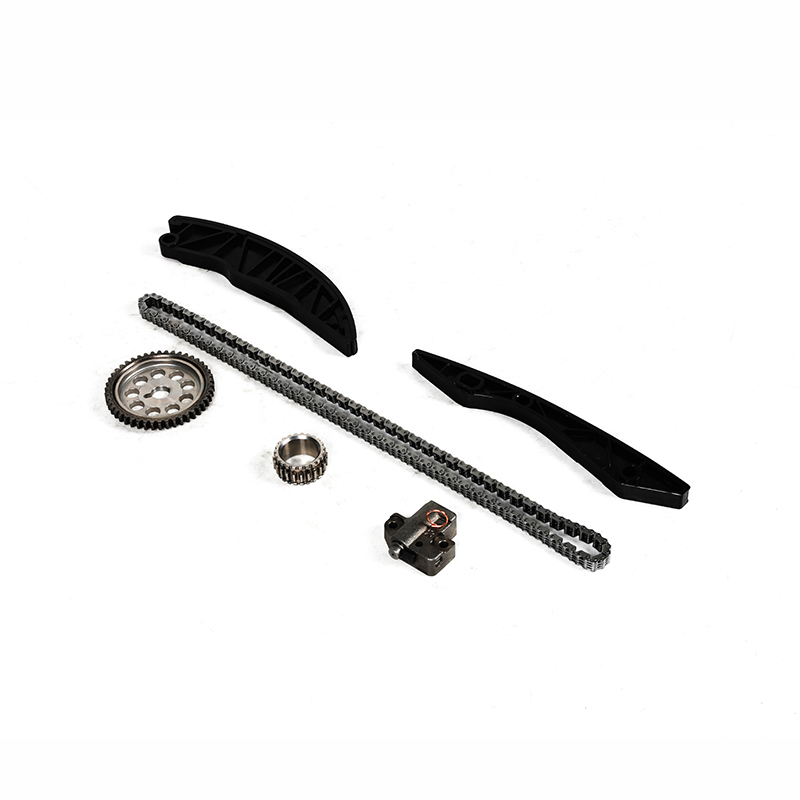

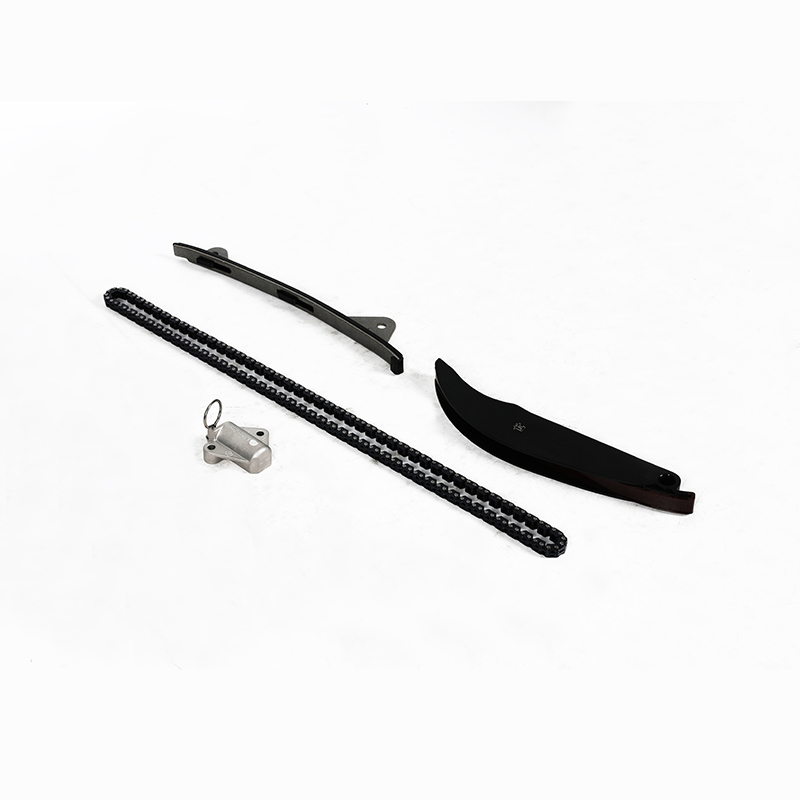

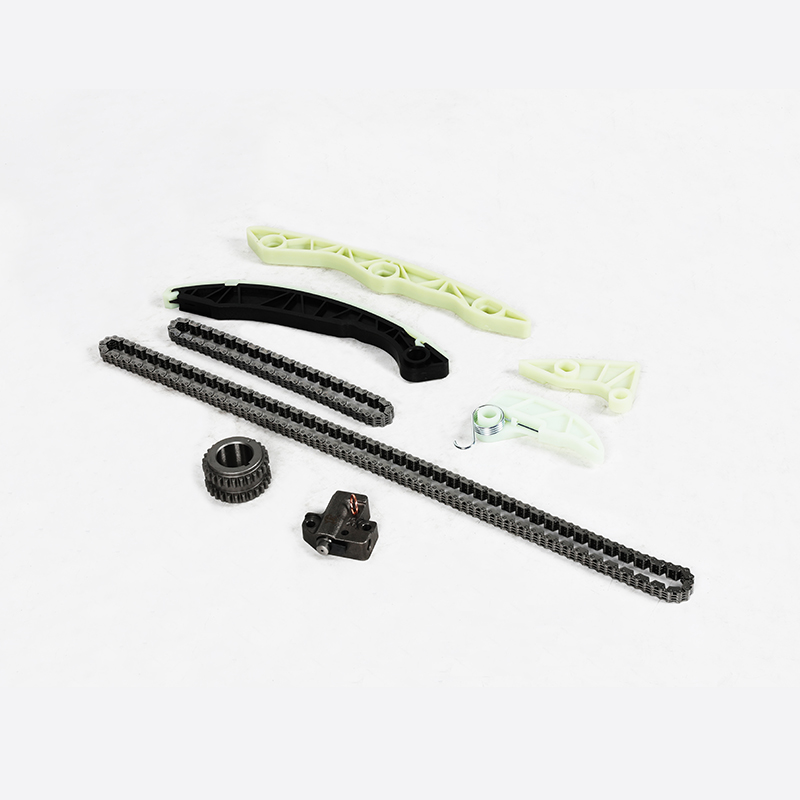

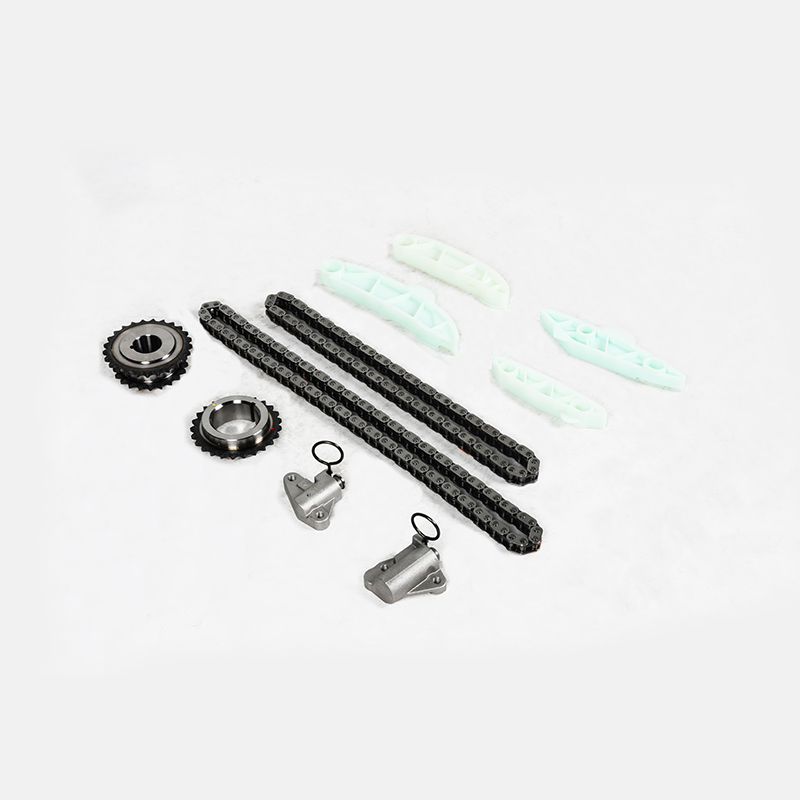

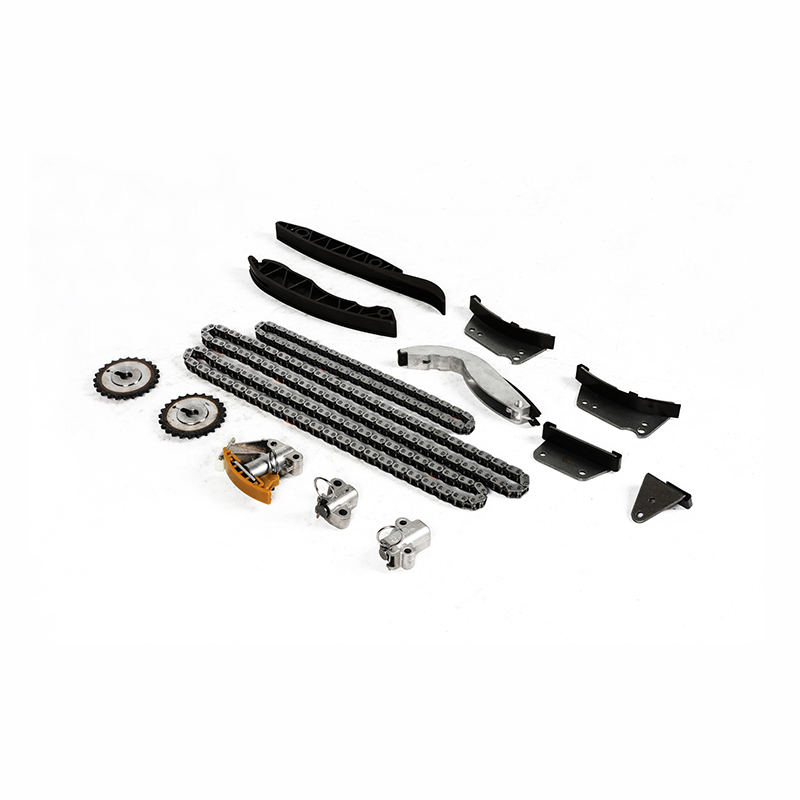

Our Hyundai programme is built around complete kits rather than loose components. Each kit groups the chain, hydraulic or mechanical tensioner, guide rails and camshaft or crankshaft sprockets required for one engine application, so workshops and distributors receive a matched set with consistent pitch, tooth profile and damping behaviour.

We produce the full timing chain system in-house: chain, guide and tensioner are our core lines, with sprockets machined from high-carbon chromium alloy steel. This lets us control the interface between chain and sprocket, which is where most premature Hyundai timing failures originate.

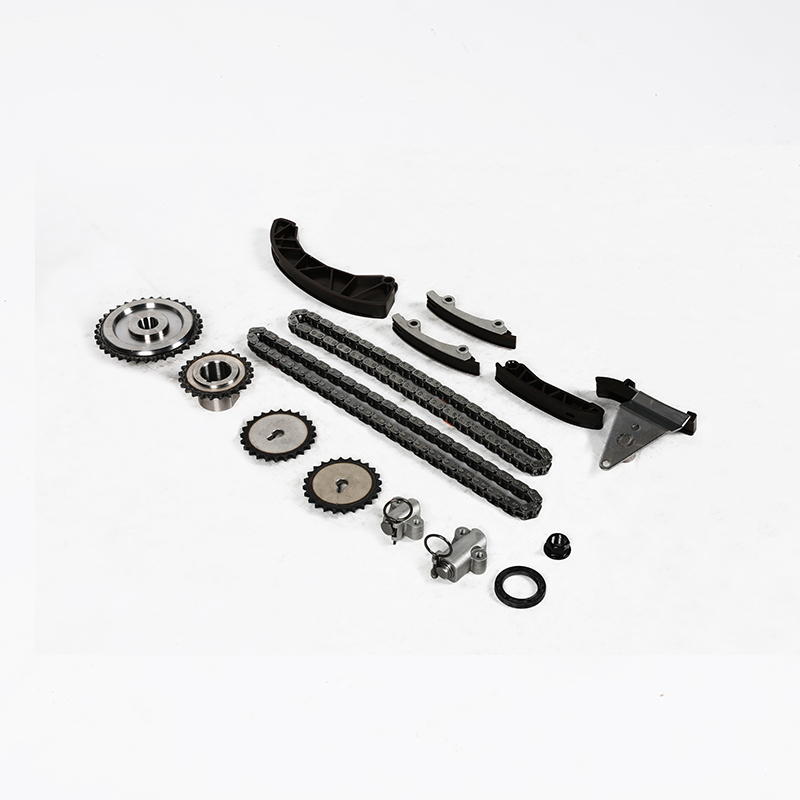

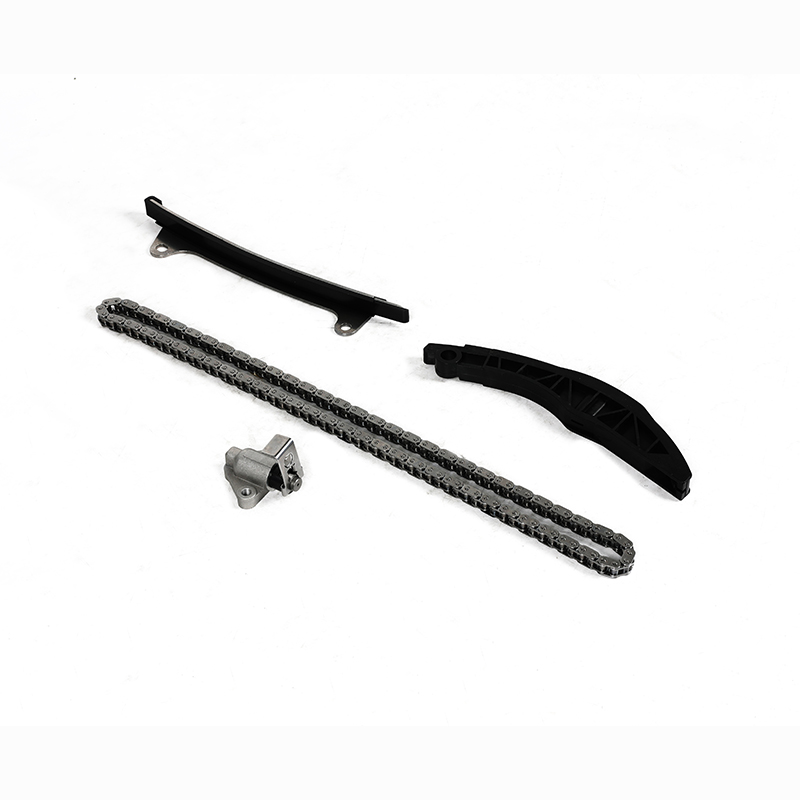

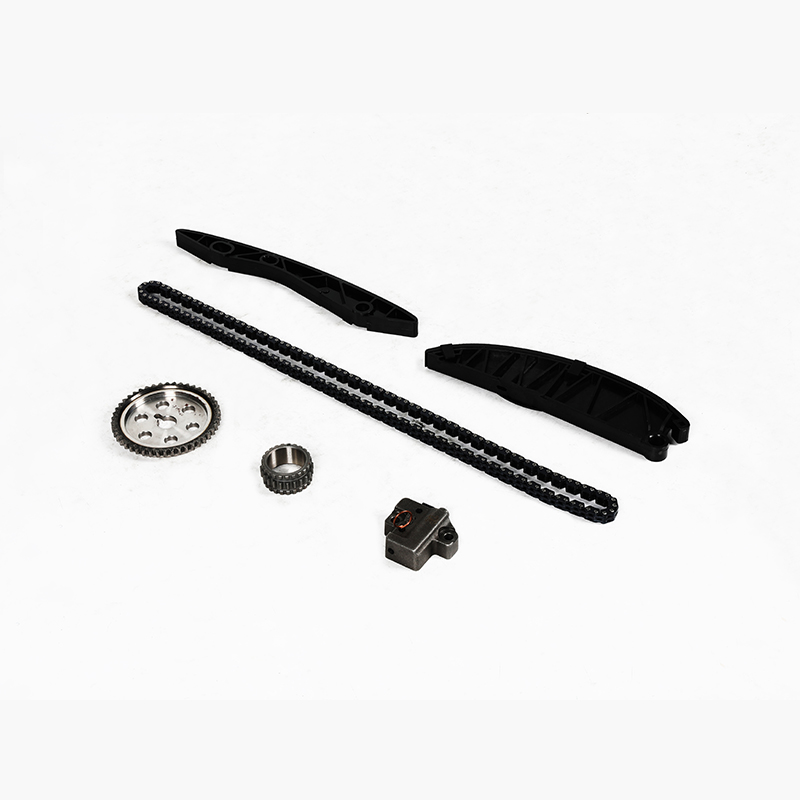

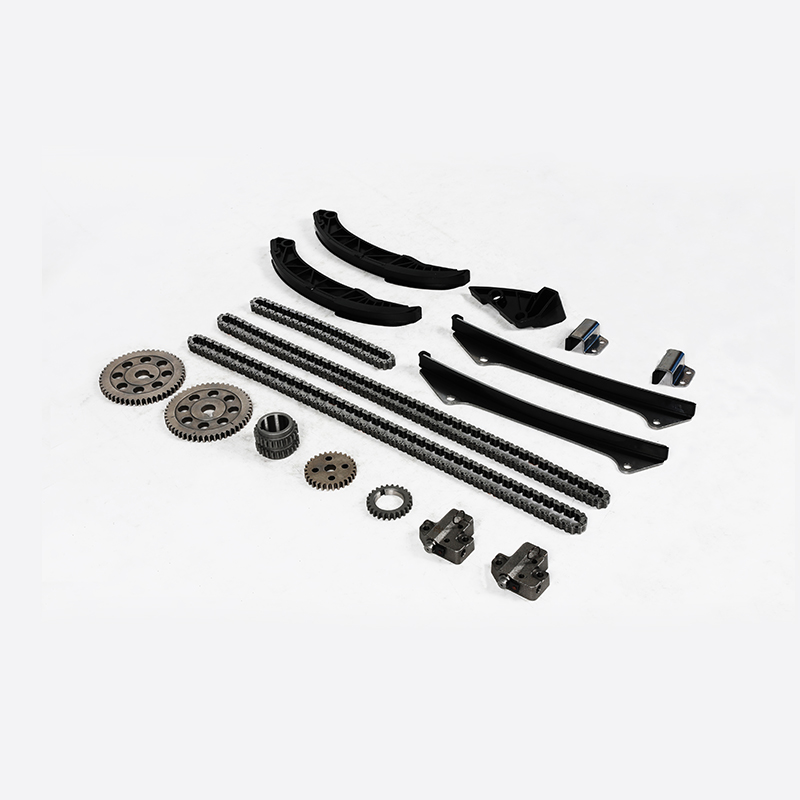

Component Scope Inside a Hyundai Kit

• Timing chain – high-tensile alloy steel, pre-stretched, single and multi-row configurations such as G67HP and G67HR sizes.
• Tensioner – hydraulic or mechanical, matched to the engine oil pressure and operating temperature range.
• Guide rails – reinforced composite polymer, shaped to control chain movement and reduce friction.
• Sprockets – crank and cam sprockets, case-hardened with a precision tooth profile and controlled bore and keyway.

Application Fit Across Hyundai Engine Families

Hyundai engines span MPI, GDI and diesel architectures, and the timing system differs between them. Our kit references are organised by engine code and build date so that fitment is confirmed before production, not after installation.

We regularly supply kits for the 2.0L Nu and 2.4L Theta II families, and for diesel applications where chain stretch and cold-start rattle are the common complaints. Kits are also used by workshops resolving timing noise on higher-mileage Hyundai vehicles.

Engineering Value in the Chain and Sprocket Interface

Timing chain failures on Hyundai engines rarely start with the chain alone. A sprocket with an off-centre keyway or an oversize bore lets the sprocket wobble, the chain tension pulses each revolution, and the tensioner keeps correcting until it reaches the end of its travel. We machine sprocket bores to a defined tolerance class and reference the keyway to tooth position, then verify runout on a dial indicator.

Heat treatment is the second control point. Tooth flanks that are too soft deform under load and the effective pitch grows; flanks that are too hard chip under impact. We harden sprockets within a defined surface range and test hardness on every batch before packing.

Inspection We Apply Before Packing

• Tooth flank condition checked under magnification for peening, pitting or rolled edges.
• Bore diameter verified with a bore gauge or inside micrometer.
• Keyway width and position checked with a pin gauge referenced from the teeth.
• Total indicated runout measured on V-blocks.
• Surface hardness tested against the declared range.
• Chain seating confirmed by wrapping a new chain and rotating by hand.

Configuration Options and Custom Supply

We supply Hyundai timing chain kits in several configurations depending on the engine and the customer's programme. A kit can be supplied as a full set with chain, tensioner, guides and sprockets, or as individual components where a workshop or distributor already stocks part of the system.

Custom production is available from drawings or samples. We can adjust kit content, packaging and labelling to match a distributor's catalogue structure, and we develop new references where a Hyundai engine application is not yet covered in our range.

Quality Assurance and Standards

Our timing chain system products are manufactured in accordance with GB/T14212-2003 and JB/T10348-20, supported by a quality management system applied across incoming material, machining, heat treatment and final assembly. We operate our own testing laboratory with inspection equipment covering chemical composition, mechanical properties and dimensional accuracy.

Finished kits are inspected 100% against customer requirements and the applicable international standard before packing. Where a project requires specific acceptance criteria, we agree the inspection plan with the customer before production begins.

Manufacturing Capacity and Delivery Scope

Jingtong was founded in 2013 and now operates three branches covering 12,000 square metres, including an 8,000 square metre factory brought into service in 2022. Our annual production capacity exceeds 5,000,000 single parts, which supports both repeat distributor orders and larger project volumes.

We ship from Tongxiang, close to Ningbo and Shanghai ports, which keeps sea freight efficient for export orders. Air freight is available from Ningbo and Shanghai airports when a delivery is urgent.

Information We Use to Configure Your Solution

To prepare an accurate Hyundai timing chain kit proposal, we work from the following project inputs. The more precisely these are defined, the faster we can confirm the correct kit content and quotation.

• Hyundai model, engine code and build date range.
• OE part numbers or reference numbers for cross-checking.
• Required kit content: full set or selected components.
• Target quantity and expected order frequency.
• Packaging, labelling and branding requirements.
• Inspection or acceptance criteria for the project.
• Destination port and preferred shipping terms.

Related Timing Chain Kit Ranges

Alongside our Hyundai programme, we manufacture timing chain kits for other major vehicle platforms. Distributors building a broader catalogue can combine Hyundai references with our Ford 3.5 4.0 Car Engine Timing Chain Kit and Toyota K3Ve Car Engine Timing Chain Kit ranges, all produced to the same material and inspection standards.

Our full Universal Timing Chain Kit 0121 catalogue lists every vehicle-specific range we manufacture, including the complete Car Engine Hyundai Timing Chain Kit Suppliers manufacturer selection.

Frequently Asked Questions

What causes Hyundai timing chain noise and when should the kit be replaced?

Cold-start rattle on Hyundai engines usually indicates chain stretch or a tensioner that has reached the end of its travel. Once the chain stretches, valve timing drifts, fuel efficiency drops and the risk of a skipped tooth increases. Replacing the full kit – chain, tensioner, guides and sprockets – restores the correct phase relationship and avoids reusing worn sprockets against a new chain.

Are Jingtong Hyundai timing chain kits interchangeable with OE components?

Our kits are engineered to be functionally interchangeable with the corresponding OE components. We work to precise dimensional specifications and performance characteristics so the kit installs without modification and maintains the same timing accuracy and durability as the original system.

How do you confirm the correct kit for a specific Hyundai engine?

We cross-reference the Hyundai model, engine code and build date against our catalogue, and verify against the OE part number where one is available. For engines not yet listed, we can develop a reference from a sample or drawing supplied by the customer.

What is your production capacity and typical order scope?

Our annual production capacity exceeds 5,000,000 single parts across three branches covering 12,000 square metres. We supply both repeat distributor orders and larger project volumes, and we confirm quantity, packaging and delivery terms when quoting.

Can you produce custom Hyundai timing chain kits to our specification?

Yes. We develop and produce according to customer drawings or samples, and we can adjust kit content, packaging and labelling to match a distributor's catalogue. Custom references are produced under the same inspection and heat-treatment controls as our standard range.

How quickly do you respond to an enquiry?

We reply to enquiries within 12 hours on working days. For projects with defined engine codes and quantities, we can usually confirm kit content and pricing in the same response cycle.
