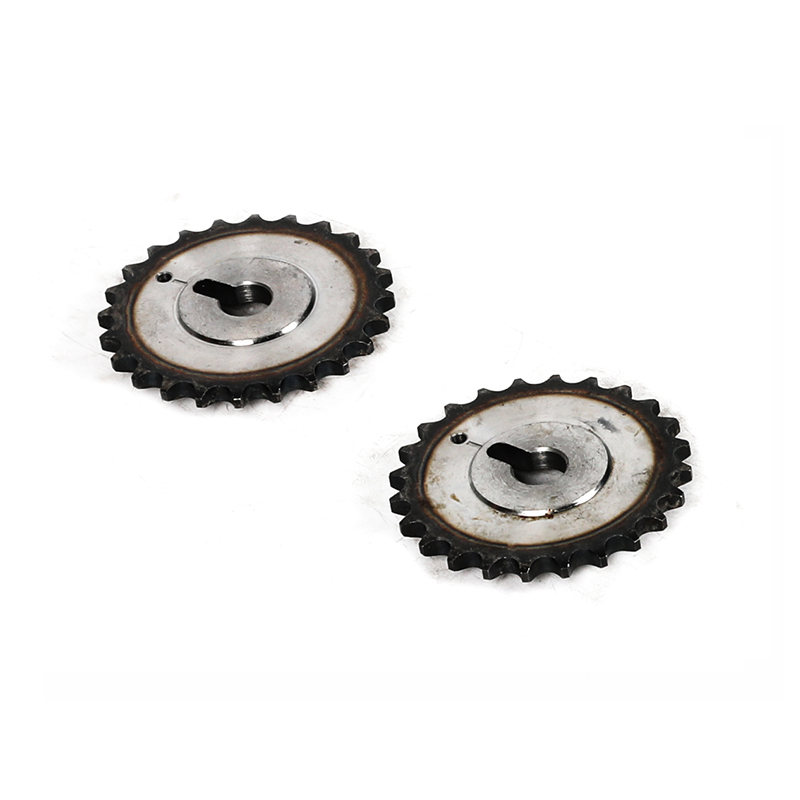

  • Hyundai timing sprocket 1002
    Hyundai timing sprocket 1002

    Category: Hyundai timing sprocket

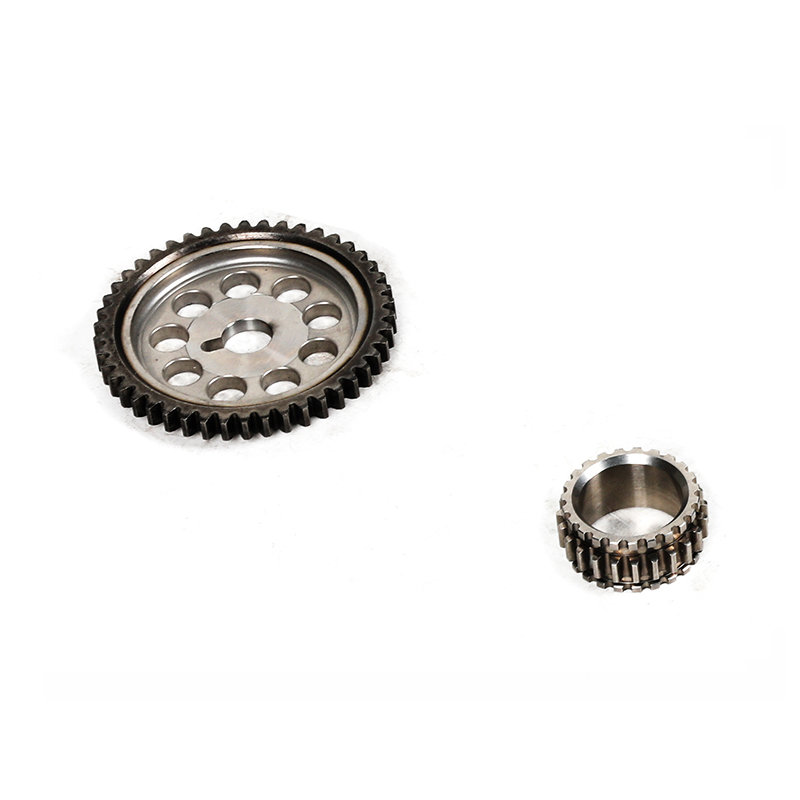

  • Hyundai timing sprocket 1003
    Hyundai timing sprocket 1003

    Category: Hyundai timing sprocket

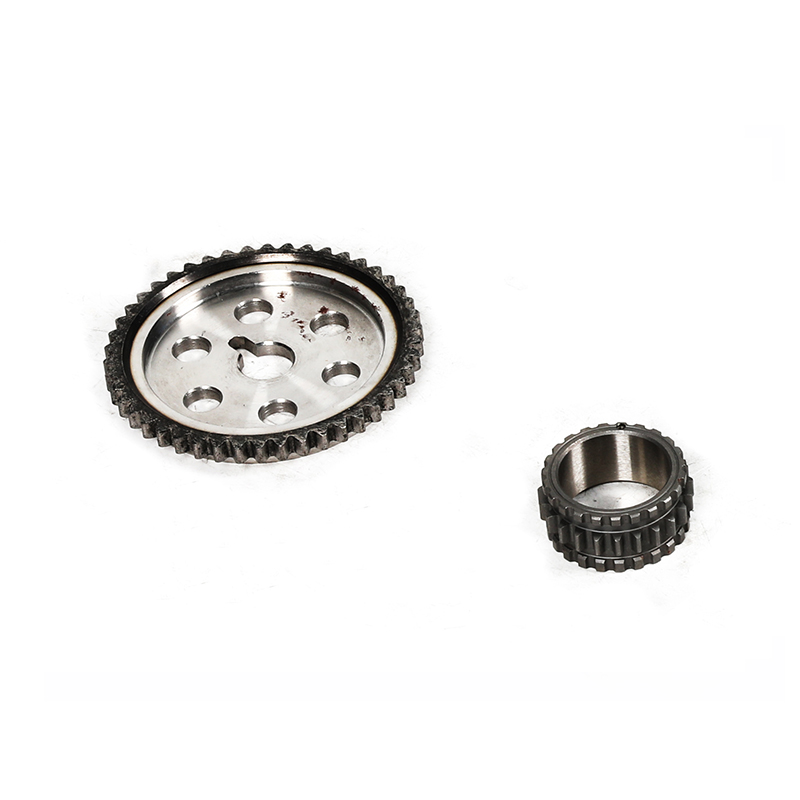

  • Hyundai timing sprocket 1004
    Hyundai timing sprocket 1004

    Category: Hyundai timing sprocket

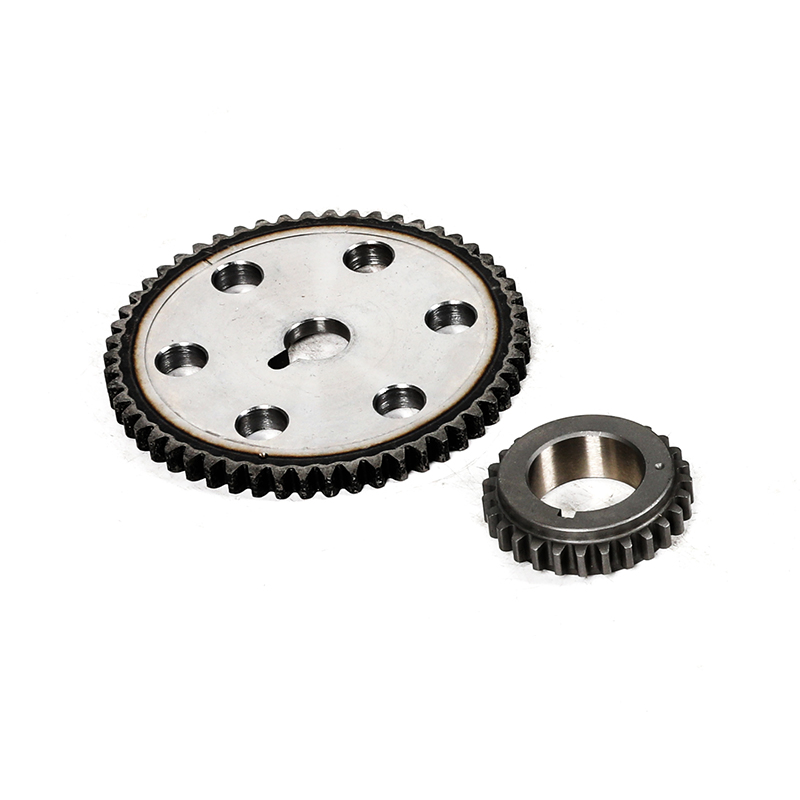

  • Hyundai timing sprocket 1005
    Hyundai timing sprocket 1005

    Category: Hyundai timing sprocket

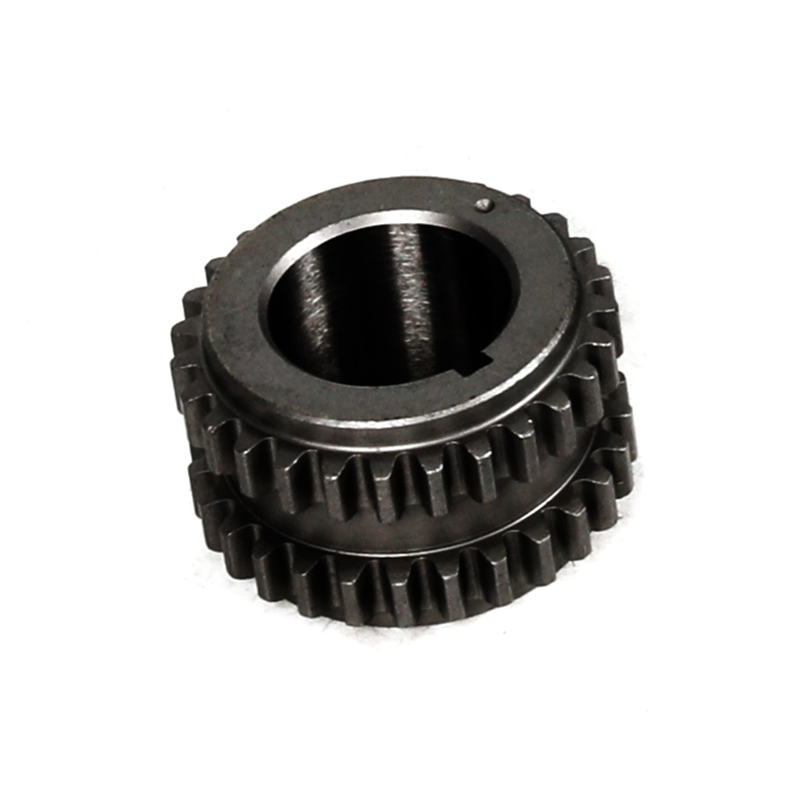

  • Hyundai timing sprocket 1006
    Hyundai timing sprocket 1006

    Category: Hyundai timing sprocket

  • Hyundai timing sprocket 1007
    Hyundai timing sprocket 1007

    Category: Hyundai timing sprocket

  • Hyundai timing sprocket 1008
    Hyundai timing sprocket 1008

    Category: Hyundai timing sprocket

  • Hyundai timing sprocket 1015
    Hyundai timing sprocket 1015

    Category: Hyundai timing sprocket

  • Hyundai timing sprocket 1016
    Hyundai timing sprocket 1016

    Category: Hyundai timing sprocket

  • Hyundai timing sprocket 1020
    Hyundai timing sprocket 1020

    Category: Hyundai timing sprocket

  • Hyundai timing sprocket 1021
    Hyundai timing sprocket 1021

    Category: Hyundai timing sprocket

Product advantages:
1. All components have been carefully checked and verified to meet the most stringent quality standards to ensure a long service life.
2. The after-sales service team will solve your problems in a timely manner, and we will solve any doubts or questions about the products or orders in a timely manner.
3. The product is applicable to Hyundai, which can directly replace the original accessories.
4. Provide complete timing chain sprocket with the latest design and technology.

Product specification description:
Engine timing system: drive chain
Number of teeth: 24
Weight [kg]: 0154

Car Engine Hyundai timing sprocket Suppliers

Huzhou Jingtong Auto Parts Manufacturing Co., Ltd is China car engine Hyundai timing sprocket suppliers and OEM car engine Hyundai timing sprocket company. We focus on auto engine timing chain kits, including timing chains, tensioners, guides, and gears. Our products are used for auto engine timing system parts. We have two our own manufacturing factory, we also have our own international sales department. we produce and sell all by ourselves. We will reply to you within 12 hours of the working day.

Honor & Certificate

  • GB/T14212-2003 Certificates
  • JB/T10348-200 Standard
  • GB/T14212-2003 Certificates
  • JB/T10348-200 Standard
  • GB/T14212-2003 Certificates
  • JB/T10348-200 Standard
  • Certificates
  • Certificates

Lastest News

Hyundai timing sprocket Industry Knowledge Extension

Hyundai Timing Sprockets Manufactured by Jingtong

Huzhou Nanxun Jingtong Auto Parts Manufacturing Co., Ltd. produces Hyundai timing sprockets as part of our engine timing chain system range. We manufacture sprockets, chains, tensioners and guides in-house using high-carbon chromium alloy steel, following GB/T14212-2003 and JB/T10348-200 standards. Our Hyundai timing sprocket line covers 18 part numbers for direct replacement of original components.

We supply distributors, engine rebuilders and aftermarket brands worldwide. Our sprockets are machined for correct tooth profile, bore and keyway fit, then heat treated to hold timing under load. Every batch is inspected before packing.

Our Hyundai Timing Sprocket Range

Our Hyundai timing sprocket catalogue includes 18 active part numbers, from 1001 through 1021, covering popular Hyundai petrol and diesel engines. Each sprocket is designed as a direct replacement for the original part, with the same tooth count, bore diameter and keyway position.

Part Number Teeth Weight (kg) Application
1001 24 0.154 Hyundai engine timing system
1002 24 0.154 Hyundai engine timing system
1003 24 0.154 Hyundai engine timing system
1004 24 0.154 Hyundai engine timing system
1005 24 0.154 Hyundai engine timing system
1006 24 0.154 Hyundai engine timing system
1007 24 0.154 Hyundai engine timing system
1008 24 0.154 Hyundai engine timing system
1015 24 0.154 Hyundai engine timing system
1016 24 0.154 Hyundai engine timing system
1020 24 0.154 Hyundai engine timing system
1021 24 0.154 Hyundai engine timing system

For Hyundai timing chain kits that include sprockets, chains, tensioners and guides, see our Hyundai Timing Chain Kit 28 range.

Application Fit and Engine Coverage

Hyundai timing sprockets are used on the crankshaft and camshaft to maintain valve timing. Our sprockets fit Hyundai engines that use a chain drive system, including petrol and diesel variants found in passenger cars and light commercial vehicles.

Each sprocket is matched to the chain pitch and tooth profile of the original design. When replacing a sprocket, we recommend replacing the chain, tensioner and guide at the same time to maintain correct timing and avoid premature wear.

Materials and Manufacturing

We machine Hyundai timing sprockets from high-carbon chromium alloy steel. This material provides the hardness and wear resistance needed for the tooth flanks to hold their shape under load. After machining, sprockets are heat treated to a defined surface hardness range.

Our production follows GB/T14212-2003 and JB/T10348-200 standards. We inspect tooth profile, bore diameter, keyway position and runout at each stage. Finished sprockets undergo 100% inspection before packing.

Quality Control and Inspection

Our testing lab is equipped with a spectrometer, metallographic microscope, tension tester, low temperature tester, X-ray tester, MPT, UT, CMM and video measurement machine. These instruments allow us to verify chemical composition, mechanical properties, non-destructive testing and dimensional accuracy.

For Hyundai timing sprockets, we check:

  • Tooth profile and pitch accuracy against the chain
  • Bore diameter and keyway position
  • Surface hardness after heat treatment
  • Runout and concentricity
  • Chain seating and backlash

We can provide inspection reports and material certificates with shipments. Our quality system is supported by our own manufacturing facilities and international sales department.

Customization and OEM Support

We produce custom Hyundai timing sprockets according to customer drawings or samples. Our R&D team can develop new part numbers for specific engine codes or modify existing designs for different tooth counts, bore sizes or keyway configurations.

For OEM projects, we work with your technical team to confirm specifications, tolerances and inspection criteria. We also support private labeling and custom packaging for distributors.

Information We Use to Configure Your Solution

To prepare a quotation and technical proposal for Hyundai timing sprockets, we need the following information:

  • Hyundai engine code or vehicle model and year
  • Original part number or a sample sprocket
  • Required tooth count, bore diameter and keyway dimensions
  • Material and hardness requirements, if specified
  • Annual or first-order quantity
  • Packaging and labeling requirements
  • Destination port and preferred shipping terms

With these details, we confirm the correct part number, production feasibility and lead time. We reply to inquiries within 12 hours on working days.

Packaging, Delivery and Support

Hyundai timing sprockets are packed in individual boxes or bulk cartons according to customer requirements. We ship from Ningbo or Shanghai port, with air freight available from Ningbo and Shanghai airports for urgent orders.

Our products are exported to more than 20 countries, including the United States, Germany, Russia, Uruguay and Algeria. We provide technical documentation and support for installation and maintenance.

Frequently Asked Questions

What Hyundai engine codes do your timing sprockets cover?

Our Hyundai timing sprocket range covers 18 part numbers for popular Hyundai petrol and diesel engines. To confirm fitment, provide the engine code or original part number, and we will match it to the correct sprocket.

Can you produce custom Hyundai timing sprockets?

Yes. We manufacture custom sprockets according to drawings or samples. Our R&D team can adjust tooth count, bore size, keyway dimensions and material to meet your specifications.

What material are your Hyundai timing sprockets made from?

We use high-carbon chromium alloy steel. This material is heat treated to achieve the surface hardness required for reliable timing chain operation.

What is your minimum order quantity?

Minimum order quantities vary by part number. Contact us with your required part numbers and quantities, and we will confirm the MOQ and lead time.

Do you provide inspection reports?

Yes. We can provide inspection reports and material certificates for Hyundai timing sprocket orders. Our testing lab verifies chemical composition, hardness, dimensions and runout.

How do I request a quote?

Send us your engine code, part number or sample details, quantity and destination. We will reply within 12 hours on working days with a quotation and technical confirmation.

For more information on our full timing chain system, visit our Car Engine Hyundai timing sprocket Suppliers page or explore our Universal Timing Chain Kit 0121 range.
