Car Engine Timing Sprocket Manufacturers

Timing Sprockets We Manufacture

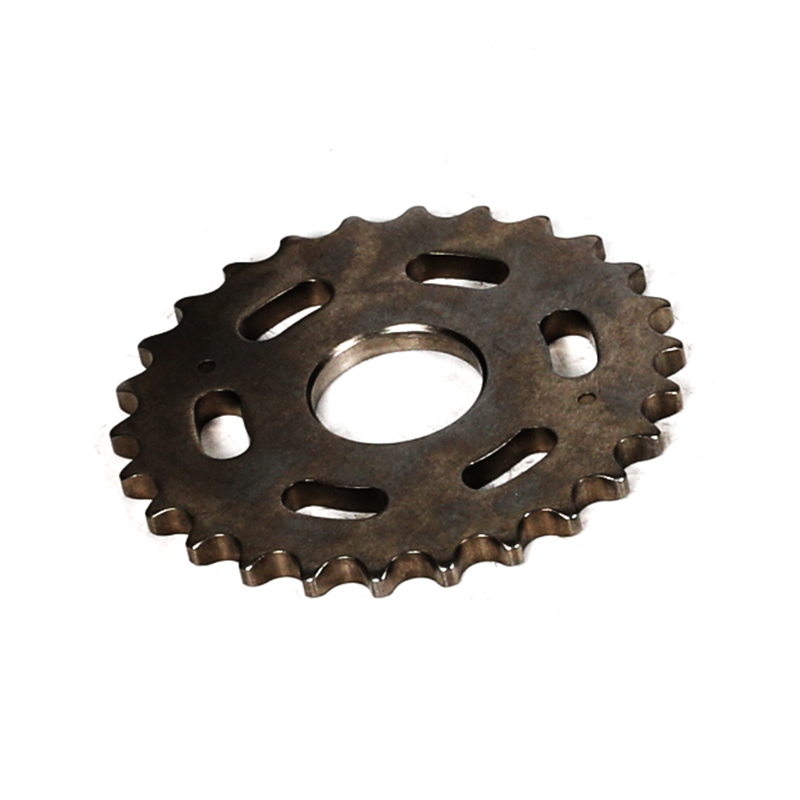

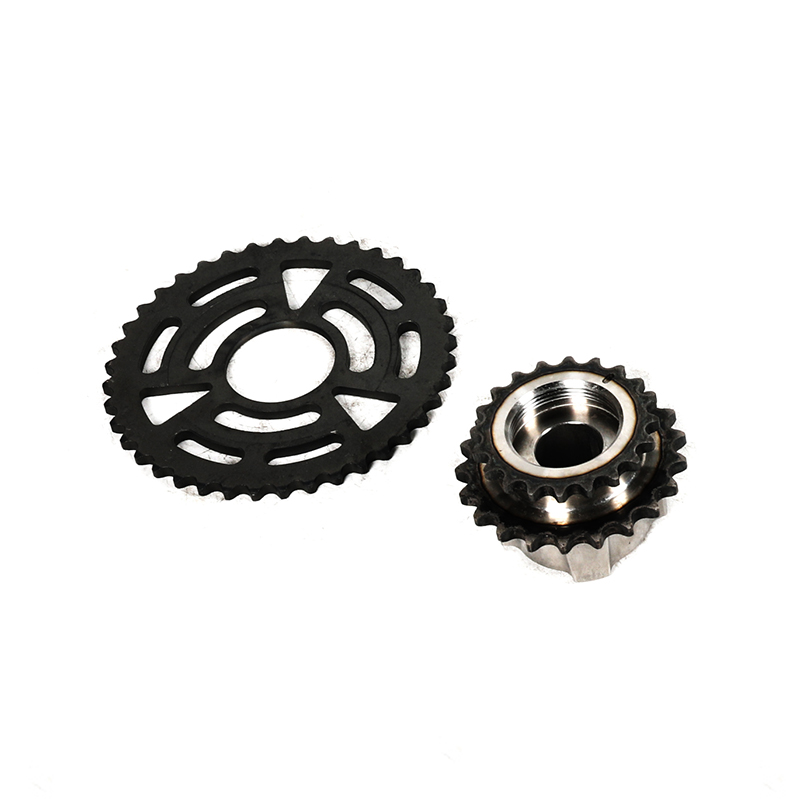

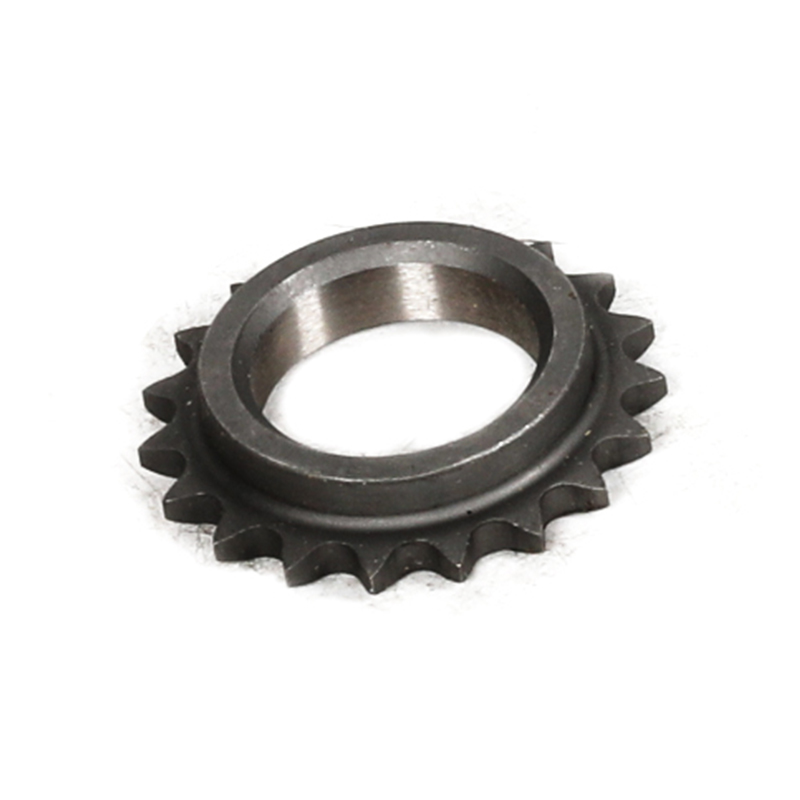

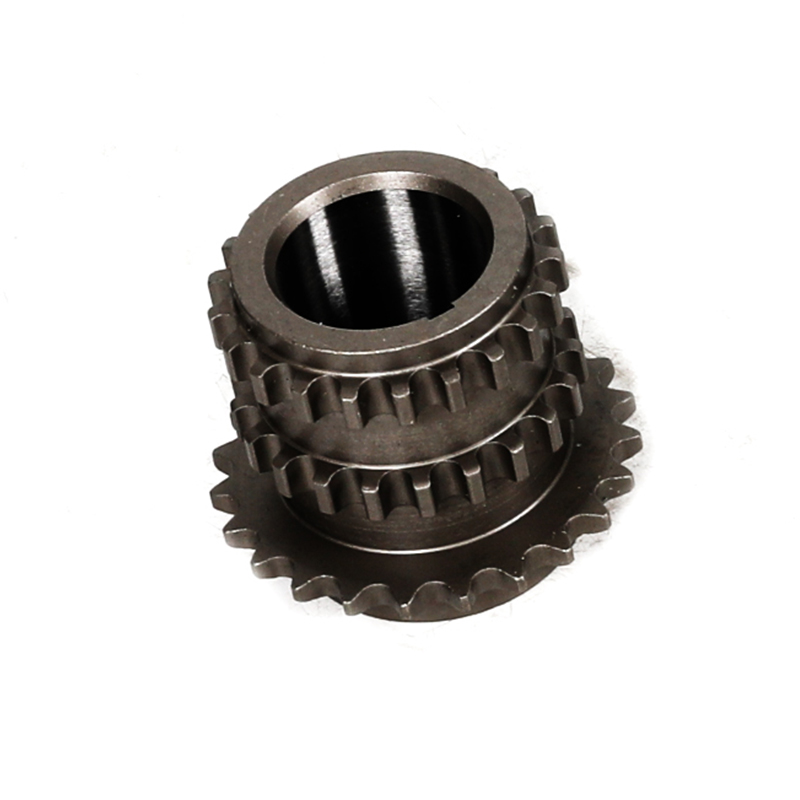

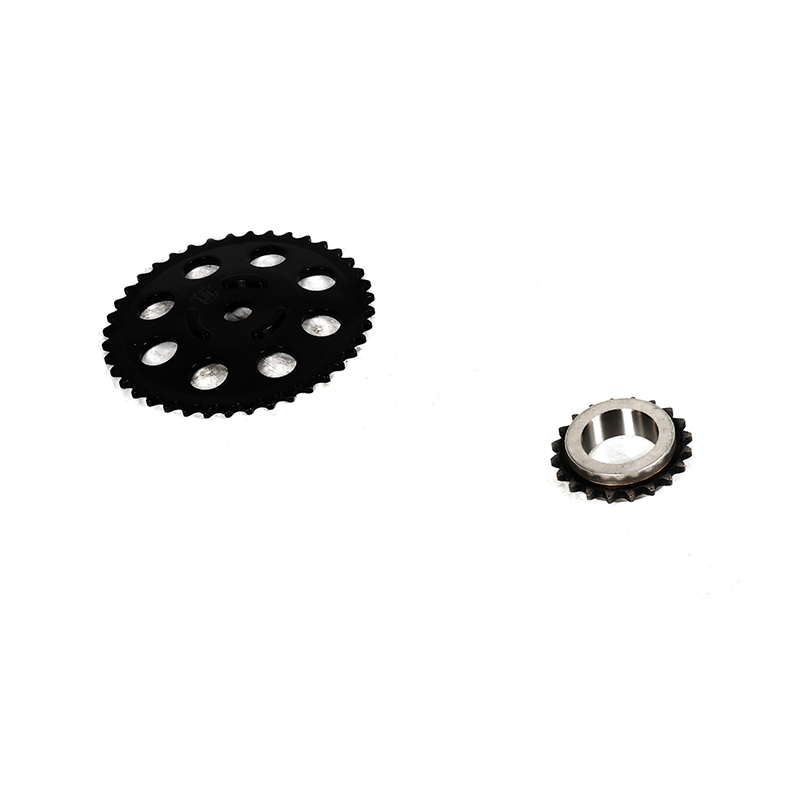

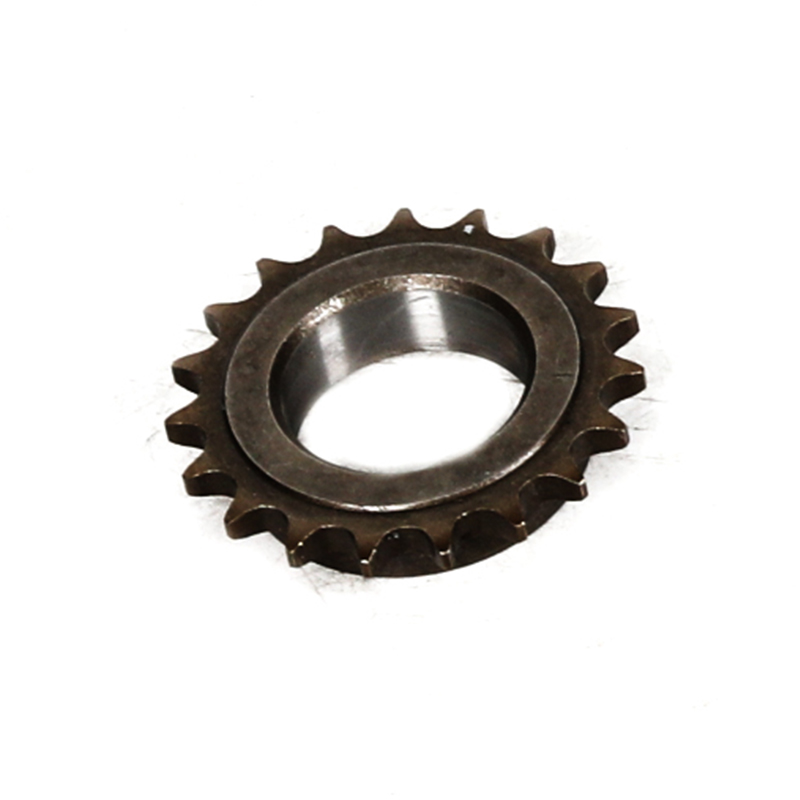

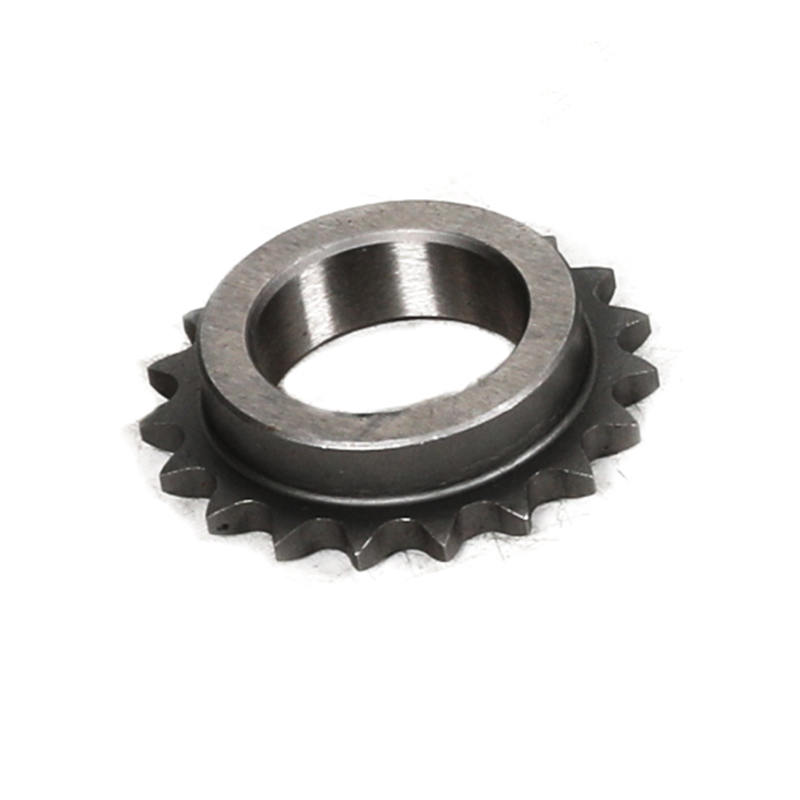

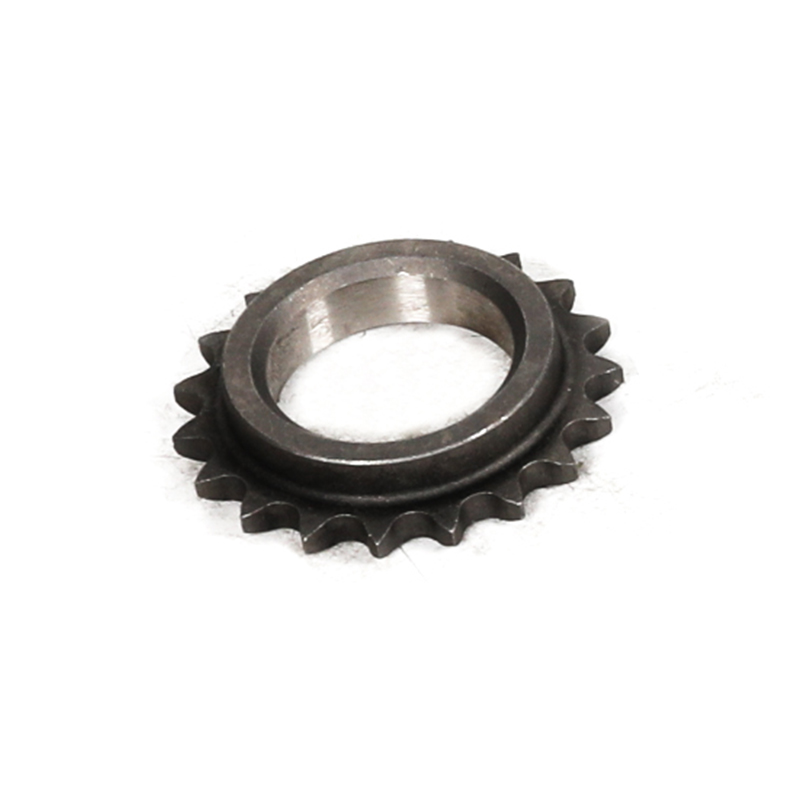

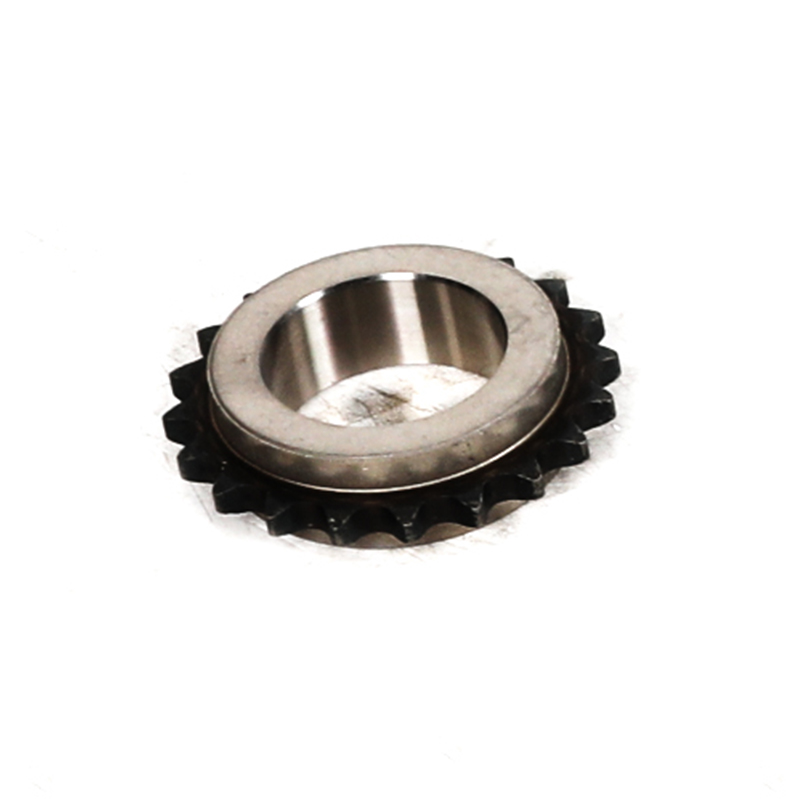

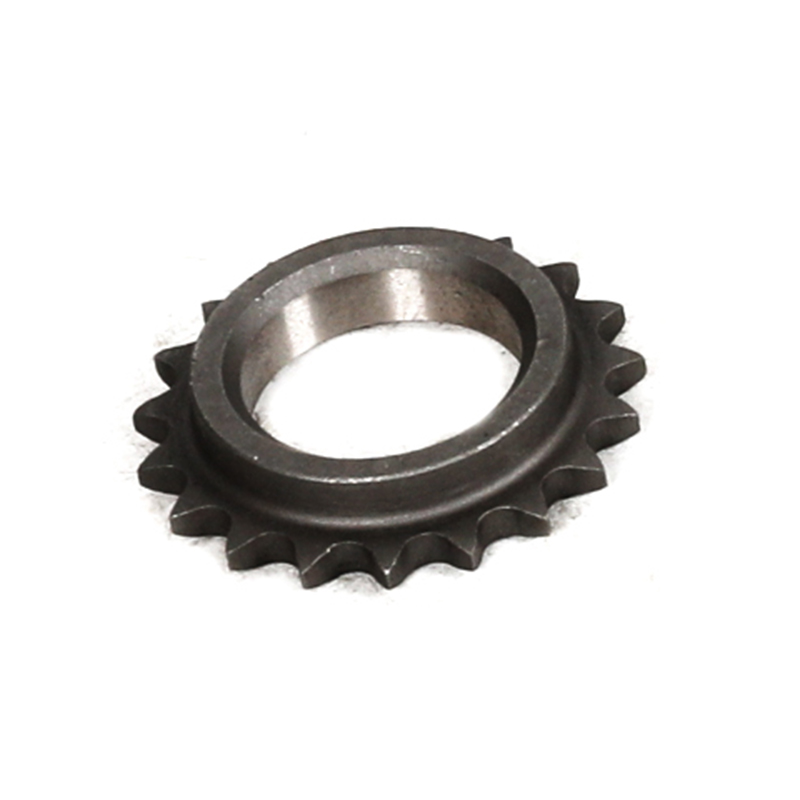

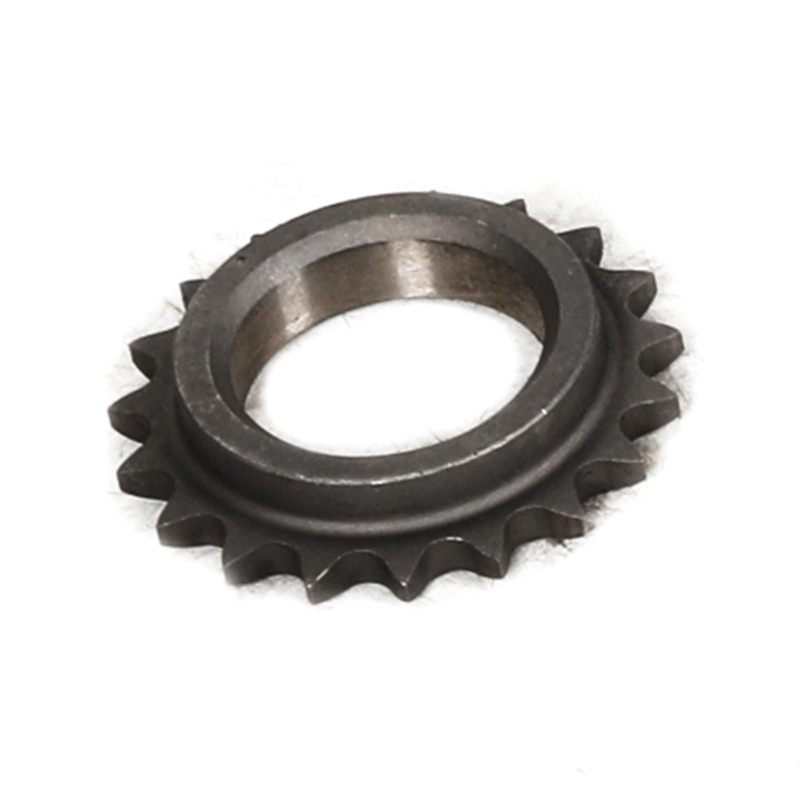

We produce timing sprockets as part of a complete engine timing chain system. Each sprocket is machined from high-carbon chromium-alloy steel and heat treated to hold tooth profile under load. Our sprocket catalogue includes 396 items, split between universal sprockets and platform-specific sprockets for European, American and Asian engines.

The sprocket is the mechanical interface between the chain and the crankshaft or camshaft. Its teeth transfer load, its bore fixes it to the shaft, and its keyway locks in phase. We manufacture to GB/T14212-2003 and JB/T10348-200 standards, with inspection at every process stage.

Our Timing Sprocket Range

Our range is organised by vehicle platform so distributors and engine rebuilders can match a sprocket to the engine family they service. Universal sprockets cover common chain pitches and bore sizes; platform-specific sprockets are produced to the original tooth count, bore and keyway position.

Application Fit and Engine Families

Timing sprockets are selected by engine family, not by vehicle model alone. The same sprocket may fit several model years where the engine code is shared. Our platform ranges cover Ford, Jeep, Chrysler, Dodge, Toyota, Nissan, Mazda, Mitsubishi, Suzuki, Honda, Hyundai, Volkswagen, Audi, Benz, BMW, Fiat, Land Rover and Chery engines.

• European platforms: VW, Audi, BMW, Benz, Fiat and Land Rover sprockets for TSI, TFSI, N-series and common-rail diesel engines.
• American platforms: Ford, Jeep, Chrysler and Dodge sprockets for petrol V6 and V8 engine families.
• Asian platforms: Toyota, Nissan, Mazda, Mitsubishi, Suzuki, Honda and Hyundai sprockets for high-volume passenger engines.
• Chinese platforms: Chery sprockets and universal sprockets for domestic and export repair markets.

Critical Specifications We Control

Four properties decide whether a sprocket holds timing under load: tooth profile and pitch accuracy, bore and keyway accuracy, heat treatment and surface hardness, and chain seating. We inspect each of these before packing.

• Tooth profile: Rollers must seat fully in every tooth space with even contact across the flank.
• Bore: Machined to the specified tolerance class, typically H7, so the sprocket does not wobble on the shaft.
• Keyway: Broached and positioned relative to tooth phase so valve timing is correct from first startup.
• Hardness: Surface hardness checked against the declared range; too soft deforms, too hard chips.
• Runout: Total indicated runout kept low to avoid chain tension pulses.

Materials and Manufacturing

We use high-carbon chromium-alloy steel for sprocket production. The material grade and heat treatment are matched to the load and wear conditions of the engine family. Our manufacturing process covers forging or casting, machining, heat treatment, and final inspection.

Our factory operates under GB/T14212-2003 and JB/T10348-200 standards. We have our own testing laboratory with spectrometer, metallographic microscope, tension tester, low temperature tester, X-ray tester, MPT, UT, CMM and video measurement equipment. Finished sprockets receive 100% inspection according to customer requirements and international standards.

Configuration and Custom Production

We produce standard sprockets from our catalogue and custom sprockets from customer drawings or samples. Custom work covers tooth count, bore diameter, keyway dimensions, hub profile, and material or heat-treatment specification.

For distributors building a private-label programme, we can supply sprockets as individual parts or as part of a complete timing chain kit. Our Universal Timing Chain Kit 0121 range shows how sprockets, chains, tensioners and guides are combined into a single service set.

Quality Assurance and Acceptance

Quality control runs through every production stage. We inspect after each process and perform final inspection on finished sprockets. Our testing laboratory allows us to verify chemical composition, mechanical properties, non-destructive testing and dimensional accuracy.

For project orders, we agree inspection criteria with the customer before production. This can include tooth profile checks, bore and keyway measurement, hardness testing, and fitment testing with a known-good chain. We document results against the agreed specification.

Information We Use to Configure Your Solution

To prepare an accurate sprocket quotation, we need the following project information. The more detail you provide, the faster we can confirm fitment and price.

• Engine make, model and engine code
• Sprocket position: crankshaft, camshaft or intermediate
• Tooth count, pitch and bore diameter
• Keyway dimensions and hub profile
• Material and heat-treatment requirement
• Annual or per-order quantity
• Packaging and labelling requirements
• Destination port and delivery terms

We reply to inquiries within 12 hours on working days. For custom sprockets, we can develop from drawings or physical samples.

Related Timing System Products

Sprockets work as part of a complete timing system. We also manufacture and supply the other components in that system, so distributors can source a full repair set from one factory.

• Ford 3.5 4.0 Car Engine Timing Chain Kit — complete kit for Ford V6 engines.
• Toyota K3Ve Car Engine Timing Chain Kit — kit for Toyota K3-VE engines.
• Bmw N14 N20 N26 Car Engine Timing Chain Kit — kit for BMW N-series engines.

Frequently Asked Questions

Are you a manufacturer or a trading company?

We are a direct manufacturer. Huzhou Nanxun Jingtong Auto Parts Manufacturing Co., Ltd. operates two manufacturing factories and our own international sales department. We produce and sell our timing sprockets and timing system components ourselves.

Can you produce custom timing sprockets from drawings or samples?

Yes. We have a strong R&D team and can develop and produce sprockets according to customer drawings or physical samples. Custom work covers tooth count, bore, keyway, hub profile and material specification.

What is your production capacity for timing sprockets?

Our annual production capacity is over 5,000,000 single parts across the timing system product line. This allows us to meet different purchase quantities, from distributor orders to large OEM programmes.

How do you guarantee sprocket quality?

We inspect after every production process and perform 100% inspection on finished sprockets according to customer requirements and international standards. Our testing laboratory includes spectrometer, metallographic microscope, tension tester, low temperature tester, X-ray tester, MPT, UT, CMM and video measurement equipment.

Which vehicle platforms do your sprockets cover?

Our sprocket range covers universal applications plus Ford, Jeep, Chrysler, Dodge, Toyota, Nissan, Mazda, Mitsubishi, Suzuki, Honda, Hyundai, Volkswagen, Audi, Benz, BMW, Fiat, Land Rover and Chery engines. We also produce sprockets for other platforms on request.

How do you ship timing sprockets?

We ship by sea from Ningbo and Shanghai ports, which are close to our factory. For urgent orders, Ningbo and Shanghai airports are also nearby. We confirm FOB, CIF or CNF terms when quoting.
